IR-0120-0160-0160 - Datasheet

MBA

Category Information

Bearings - Needle Roller Inner Rings

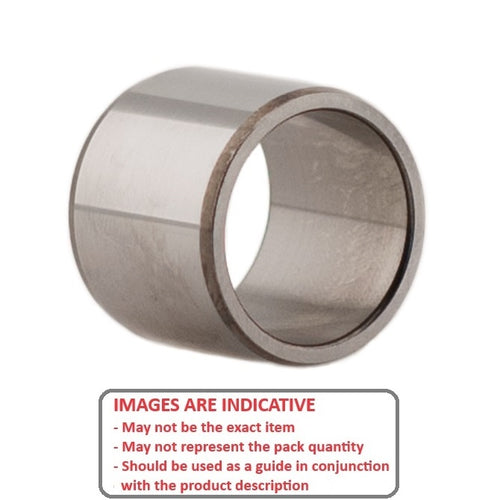

Needle Roller Inner Rings Bearings. Hardened sleeves for needle roller bearings.

  • Needle roller inner rings are high strength, high precision sleeves, that are used as a high quality surface on which a needle roller bearing can to run.
  • Pair them with a suitable needle roller where the bearing ID matches the inner ring OD.
  • They can be used to sleeve a worn shaft, or in applications where it is desirable to run the bearing on an easily replacebale surface.

Product Data

  • Inside Diameter : 12.000 mm
    (Equiv. 0.472 in.)
  • Outside Diameter 16.000 mm
    (Equiv. 0.63 in.)
  • Length (L) 16.000 mm
    (Equiv. 0.63 in.)
  • Material Chrome Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi IR12X16X16
  • IKO LRT121616
  • Misumi LRT121616
  • Nachi LRT-121616
