BF0120-0136-0046-PC2 - Datasheet

MBA

Category Information

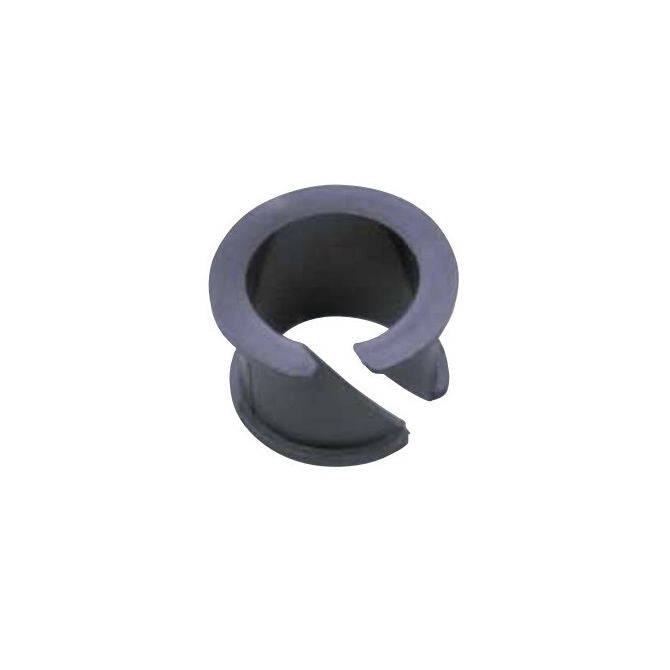

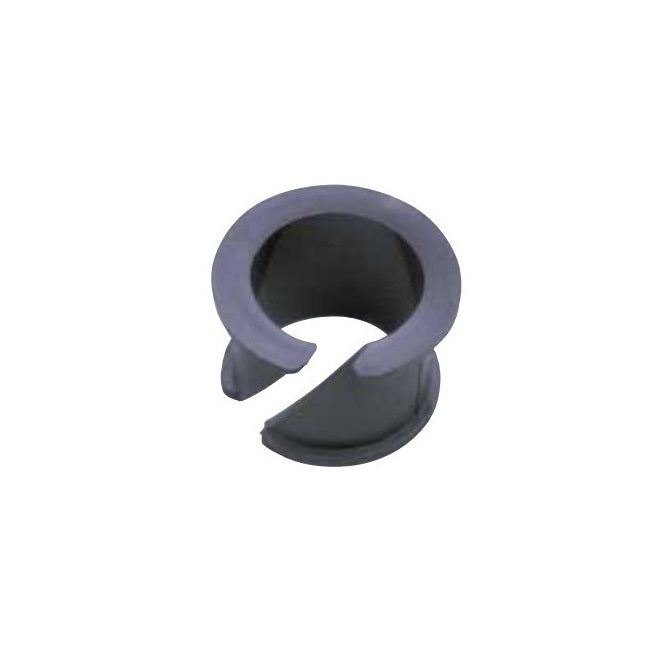

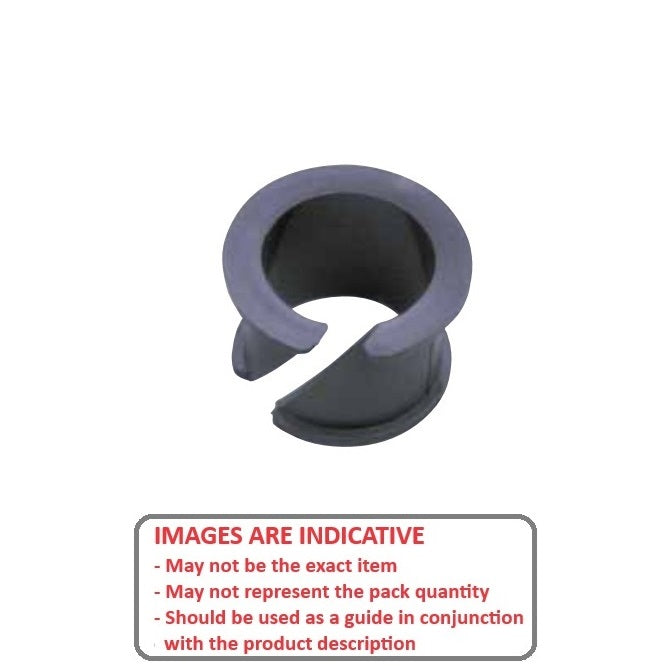

Bushes - Clip - Double Flanged

Double Flanged Clip Bushes. For use with sheet metal. Used as a light duty split bearing.

  • Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
  • Light weight
  • M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F)

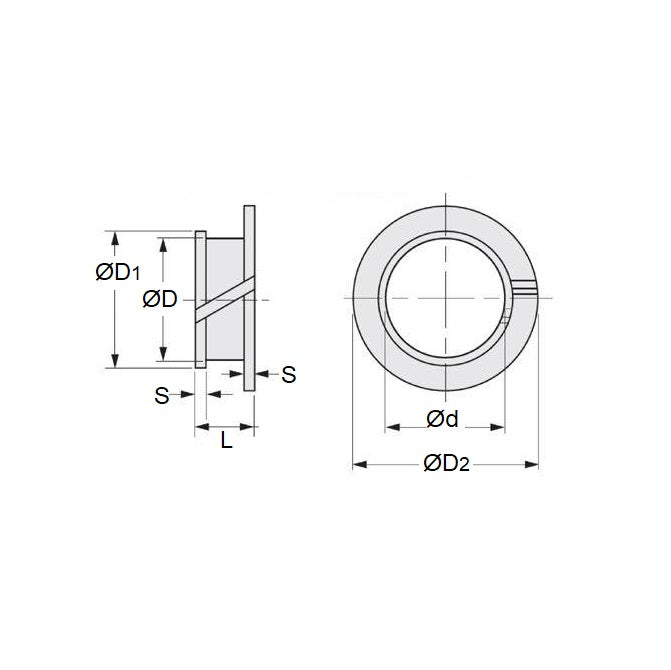

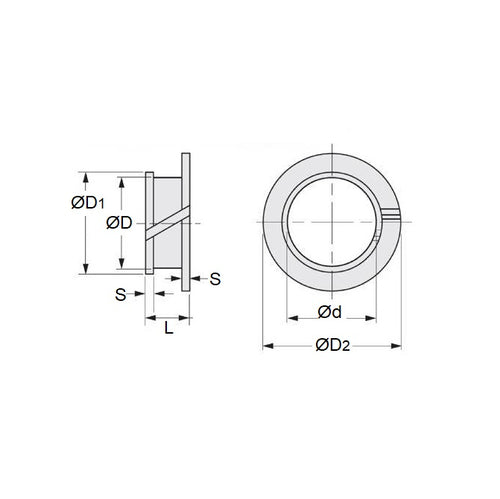

Product Data

  • Nominal Inside Diameter (d) : 12.000 mm
    (Equiv. 0.472 in.)
  • Nominal Outside Diameter (D) 13.600 mm
    (Equiv. 0.535 in.)
  • Overall Length 4.600 mm
    (Equiv. 0.181 in.)
  • Large Flange Dia 17.000 mm
  • Flange Width (S) 0.8 mm
  • Small Flange Dia 14.400 mm
  • Min Housing Bore 13.330 mm
  • Max Housing Bore 13.600 mm
  • Min Shaft Size 11.975 mm
  • Max Shaft Size 12.000 mm
  • Sheet Metal Thickness 2.45 to 2.92
  • Material Plastic
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • 7817K66
  • S99GMCM1214446
