4R-0120-1000-KZO - Datasheet
ExaktKey
Category Information

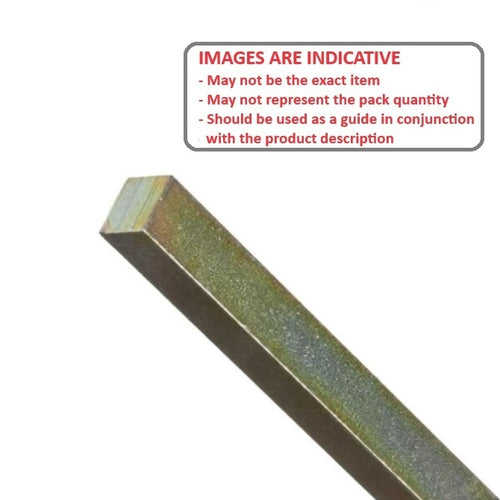

Keysteel Lengths - Square - Zinc PlatedZinc Plated Square Keysteel Lengths. Zinc plated carbon steel key steel. Square steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
- Zinc plating may be silver or yellow in colour
Product Data

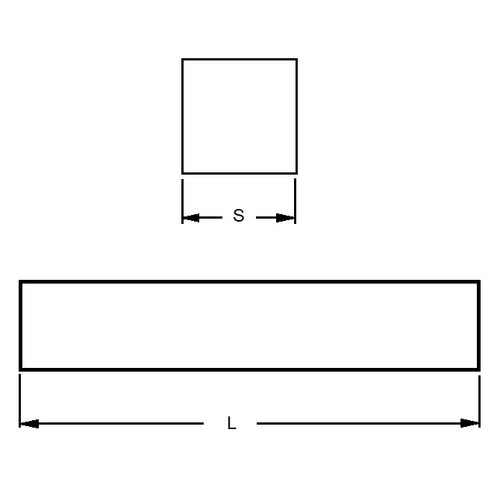

- Width (s1)
:
12.000
mm
+ 0.051 / - 0.00
(Equiv. 0.472 in.) - Height (s2)
12.000
mm
+ 0.051 / - 0.00
(Equiv. 0.472 in.) - Length (L)
1000
mm
+/- 3.2
(Equiv. 39.37 in.) - Finish Zinc Electroplate
- Tolerance Type Oversized
- Blue End Colour Code
- Material Carbon Steel 1045 Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor 361212-1000
- 3612121000
