Miniature Bearings Australia
B-030G-0128-0090-NFB - Datasheet
MBA
Category Information

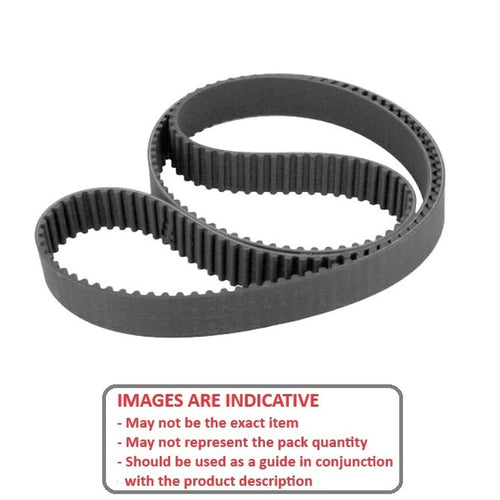

Belts - Timing 3.000mm Pitch - GT - 9mm Wide - Single SidedSingle Sided 9mm Wide GT Timing 3.000mm Pitch Belts. GT2 and GT3 Series Metric Timing Belts.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

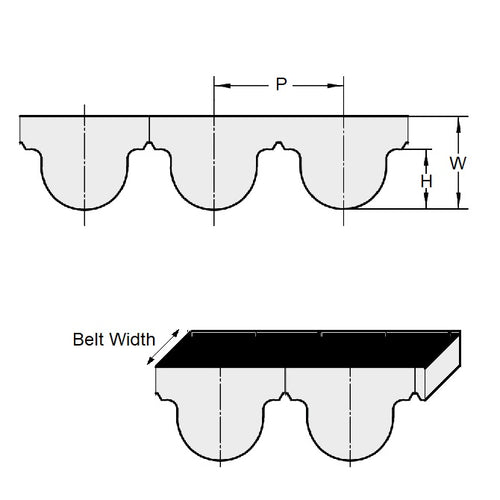

- Tooth Height (H) - 1.14mm
- Belt Height (W) - 2.41mm
- GT3 replaces GT2 as GT2 stock is depleted
- Pitch (P) - 3mm
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 128
- Length
384
mm
(Equiv. 15.118 in.) - Width
9.0
mm
(Equiv. 0.354 in.) - Reinforcement Carbon Fibre (GT3)
- Appearance Black
- Breaking Strength 1422 N
- Min Temperature (C) -34 Deg C
- Max Temperature (C) 85 Deg C
- Material Nylon Covered Neoprene Rubber with Fibreglass (GT2) or Carbon Fibre (GT3) Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates 384-3P-09
- A6R53M128090
- A36R53M128090
- 3843P09
