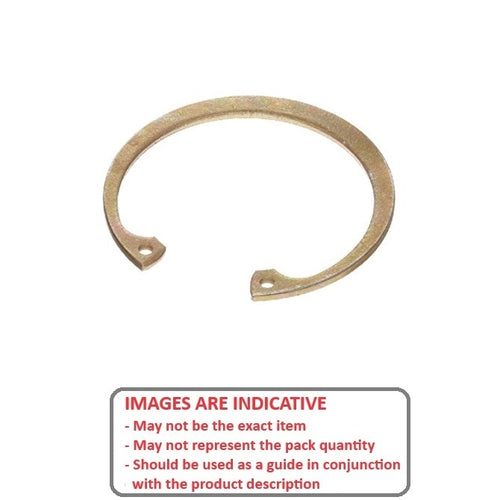

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Zinc plated carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 127.00 mm
(Equiv. 5 in.)
Clip Thickness (T) 2.84 mm _{+/- 0.152}
(Equiv. 0.112 in.)
Groove Dia. (Dg) 133.45 mm _{+ 0.00 / - 0.08}
(Equiv. 5.254 in.)
Approx. Loose Circlip OD (Dr) 139.32 mm + 1.65 / - 1.65
Groove Width (W) 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C) 103.90 mm
Clearance in Groove (C1) 109.00 mm
Min. Lug Diameter (h) 4.00 mm
Min. Extension (n) 6.00
Standard MIL-16625
Material Carbon Steel Zinc Plated

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

NoCor HO-500-ZD
HO500ZD
N13000500AZD
N1300-0500AZD
