W1200-FP-150-0350-S4 - Datasheet

MBA

Category Information

Spacers - Through Bore Round - Stainless Steel

Stainless Steel Through Bore Round Spacers. Shaft spacers - Stainless Steel

An expanded range may be available on special order. Please enquire.

Product Data

ID (d) : 120.000 mm _{+ 0.120 / + 0.470}
(Equiv. 4.724 in.)
OD (D) 150.000 mm _{- 0.145 / - 0.545}
(Equiv. 5.906 in.)
Length (L) 3.500 mm _{+ 0.000 / - 0.080}
(Equiv. 0.138 in.)
Precision
120.12
Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Country of Origin: TW

Product Compliance and Data

Additional Resources

Flat Washers

Cross References

W1200FP150035CHSS
W1200FP150035CH-SS

View full details

W1200-FP-150-0350-S4Diagram

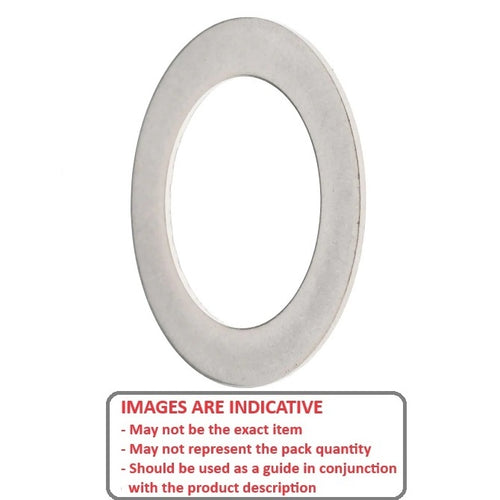

W1200-FP-150-0350-S4Image
