ES-1270-0845-18-S2 - Datasheet
MBA
Category Information

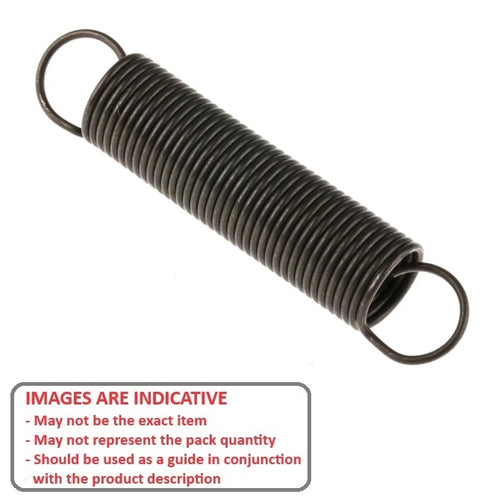

Springs - Extension - Stainless SteelStainless Steel Extension Springs. 300 gradd stainless steel selection, including 303, 304 and 316.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- 302 Stainless springs not recommended for applications exceeding 260 Deg C (500 Deg F).
- 302 stainless steel is slightly magnetic.

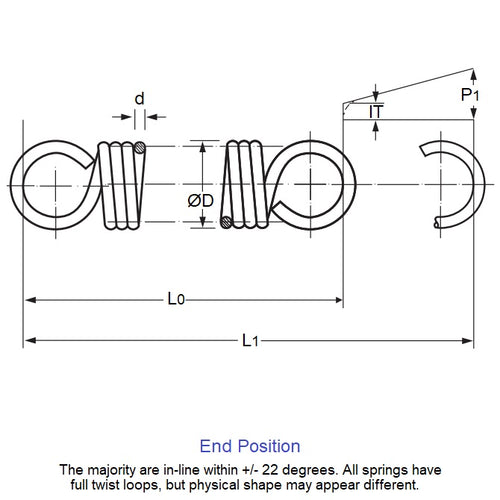

Product Data
- OD (D0)
:
12.70
mm
(Equiv. 0.5 in.) - Approx. Overall Length (L0)
84.5
mm
(Equiv. 3.327 in.) - Wire Diameter (d)
1.80
mm
(Equiv. 0.071 in.) - Body Length 47.0 - Special Style mm
- End Type Closed - Full Loop
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
