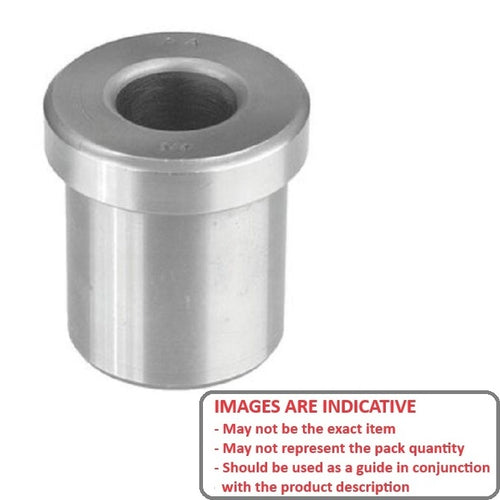

BF0064-0127-0337-DP - Datasheet
MBA
Category Information
Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Flanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64

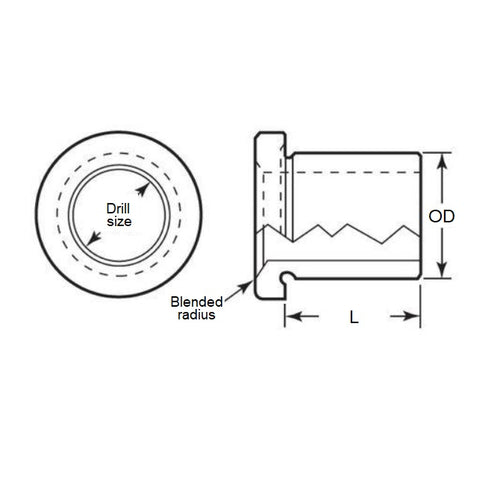

Product Data
- Outside Diameter (OD)
:
12.700
mm
+ 0.0356 / + 0.0432
(Equiv. 0.5 in.) - Drill Size
6.350
mm
+ 0.0025 / + 0.0102
(Equiv. 0.25 in.) - Length
33.655
mm
(Equiv. 1.325 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- BHT-25150
- BHT25150
