CLP-127-0306-P - Datasheet

MBA

Category Information

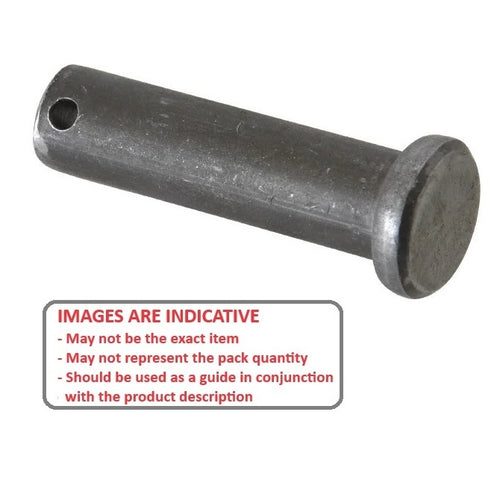

Pins - Clevis - Pin Locking - Low Carbon Steel

Low Carbon Steel Pin Locking Clevis Pins. Match with a suitable R-Clip or Spilt Pin - pin size shown in listings

  • Non-threaded fastener with a head on one end and a hole/groove on the other, used to connect two or more parts in a way that allows for rotation, similar to a bolt, by passing through aligned holes.
  • A retaining pin, such as a cotter pin, E-clip or R-clip, is inserted into the hole/groove at the end to keep the clevis pin secured in place.
  • In addition to retaining parts on a shaft or axle, clevis pins can also be used as light duty axles, spring holders or even fishing line weights.
  • Made from low carbon steel

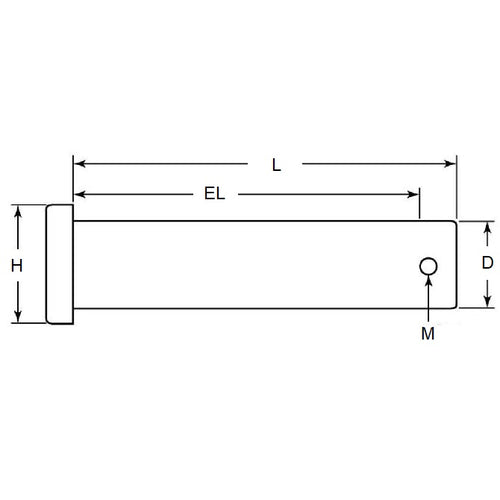

Product Data

  • Nominal Pin Diameter (D) : 12.70 mm - 0.10 / - 0.23
    (Equiv. 0.5 in.)
  • Grip Length (EL) 30.56 mm + 0.51 / - 0.00
    (Equiv. 1.203 in.)
  • Nom. Length (L) 34.52 mm + 0.51 / - 0.00
    (Equiv. 1.359 in.)
  • Ret. Pin Dia. (M) 3.8 mm
  • Material Carbon Steel - Low Carbon 1010 or 1018 Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 98306A730
  • YP36
  • YP-36
