R8-CSN-T9H-ECO - Datasheet
ECO
Category Information

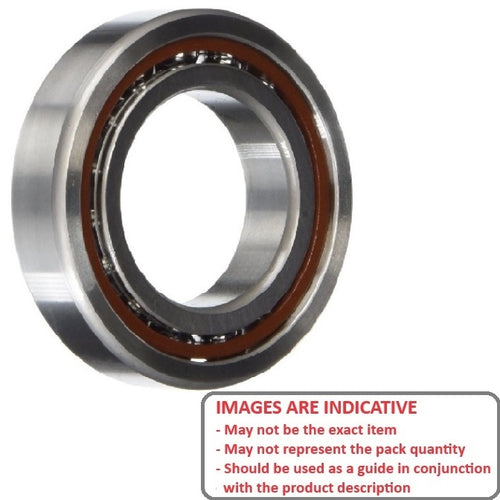

Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data
High speed polyamide cage. Ceramic balls.
- ID (d)
:
12.700
mm
(Equiv. 0.5 in.) - OD (D)
28.575
mm
(Equiv. 1.125 in.) - Width (B)
6.350
mm
(Equiv. 0.25 in.) - Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R8
- Limiting Speed 41040
- Cage Type Polyamide
- Static Load Rating KGf 187
- Dynamic Load Rating KGf 396
- Radii 0.40 mm
- Inner Shoulder (UI) 17.00mm
- Outer Shoulder (UO) 23.60 mm
- Number of Balls 8
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- Enya - 4C - 46 - Bearing 12.70-28.58-6.35mm
- Enya - 4C - 60 - Bearing 12.70-28.58-6.35mm
- Enya - BB 6001 - 25 - Bearing 12.70-28.58-6.35mm
- Enya - BB 6001 - 29 - Bearing 12.70-28.58-6.35mm
- Enya - BB 6001 - 35 - Bearing 12.70-28.58-6.35mm
- Enya - III - 120 - Bearing 12.70-28.58-6.35mm
- Fox - 40 All Models - Bearing 12.70-28.58-6.35mm
- Fox - 40 Four Spline Prop Drive Washer - 78 - Bearing 12.70-28.58-6.35mm
- Fox - 40 With Tapered Collect - 78 - Bearing 12.70-28.58-6.35mm
- K.B - 3.5 21CC All Models - Bearing 12.70-28.58-6.35mm
- K.B - 7.5 All Models - Bearing 12.70-28.58-6.35mm
- K.B - New - 67 - Bearing 12.70-28.58-6.35mm
- K.B - Old - 3.5 - Bearing 12.70-28.58-6.35mm
- McCoy - Old - 15 - Bearing 12.70-28.58-6.35mm
- McCoy - Old - 32CC - Bearing 12.70-28.58-6.35mm
- Merco - 16 All Models - Bearing 12.70-28.58-6.35mm
- Merco - 49 All Models - Bearing 12.70-28.58-6.35mm
- Merco - 50 All Models - Bearing 12.70-28.58-6.35mm
- OPS - 45 All Models - Bearing 12.70-28.58-6.35mm
- OPS - 65 All Models - Bearing 12.70-28.58-6.35mm
- OPS - 67 All Models - Bearing 12.70-28.58-6.35mm
Cross References
- BOCA R8C-TH9-C3
- R8CTH9C3
- R8 Basic Size Ref
