R8-C3-T9H - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Bearings in this group have various types of high speed cages.
Speed ratings range from 20 percent to 80 percent increase on standard cage types.
See individual datasheets, available on request.
Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

ID (d) : 12.700 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.5 in.)
OD (D) 28.575 mm _{+ 0.000 / - 0.010}
(Equiv. 1.125 in.)
Width (B) 6.350 mm _{+ 0.000 / - 0.125}
(Equiv. 0.25 in.)
Precision Grade Abec 1
Closure Type Open
Bearing Type Radial
Material Chrome Steel SAE 52100 - High Speed Polyamide Cage

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part R8
Limiting Speed 43200
Cage Type Polyamide
Static Load Rating KGf 246
Dynamic Load Rating KGf 521
Radii 0.20 mm
Inner Shoulder (UI) Undefinedmm
Outer Shoulder (UO) Undefined mm
Number of Balls 8
Clearance C3 (11 to 25)
Precision Grade Abec 1
Closure Type Open
Max Temperature 120 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
Enya - 35 III - Rear Bearing 12.70-28.58-6.35mm
Enya - 4C - 46 - Bearing 12.70-28.58-6.35mm
Enya - 4C - 60 - Bearing 12.70-28.58-6.35mm
Enya - 60 - 4 Stroke - Rear Bearing 12.70-28.58-6.35mm
Enya - 80 - 4 Stroke - Rear Bearing 12.70-28.58-6.35mm
Enya - BB 6001 - 25 - Bearing 12.70-28.58-6.35mm
Enya - BB 6001 - 29 - Bearing 12.70-28.58-6.35mm
Enya - BB 6001 - 35 - Bearing 12.70-28.58-6.35mm
Enya - III - 120 - Bearing 12.70-28.58-6.35mm
Fox - 36 - Rear Bearing 12.70-28.58-6.35mm
Fox - 36X Old Combat - Rear Bearing 12.70-28.58-6.35mm
Fox - 40 - Rear Bearing 12.70-28.58-6.35mm
Fox - 40 All Models - Bearing 12.70-28.58-6.35mm
Fox - 40 Four Spline Prop Drive Washer - 78 - Bearing 12.70-28.58-6.35mm
Fox - 40 With Tapered Collect - 0.17 - Bearing 12.70-28.58-6.35mm
K.B - 3.5 21CC All Models - Bearing 12.70-28.58-6.35mm
K.B - 40 -40-11 New - Rear Bearing 12.70-28.58-6.35mm
K.B - 40-11 - Rear Bearing 12.70-28.58-6.35mm
K.B - New - 1 - Bearing 12.70-28.58-6.35mm
K.B - Old - 3.5 - Bearing 12.70-28.58-6.35mm
K.B - Old - 7.5 - Bearing 12.70-28.58-6.35mm
McCoy - 60 Old - Front Bearing
McCoy - Old - 32CC - Bearing 12.70-28.58-6.35mm
McCoy - Old - 52 - Bearing 12.70-28.58-6.35mm
Merco - 16 All Models - Bearing 12.70-28.58-6.35mm
Merco - 2.49 All Models - Bearing 12.70-28.58-6.35mm
Merco - 49 -50 -61 - Rear Bearing 12.70-28.58-6.35mm
Merco - 49 All Models - Bearing 12.70-28.58-6.35mm
OPS - 40 All Models - Bearing 12.70-28.58-6.35mm
OPS - 45 All Models - Bearing 12.70-28.58-6.35mm
OPS - 60 -65 -67 -80 - Rear Bearing 12.70-28.58-6.35mm
OPS - 65 All Models - Bearing 12.70-28.58-6.35mm

Cross References

SKF EE4-TN9
WIB R8SD-T9H-C3
R8T9HC3
R8SDT9HC3
EE4TN9
R8 Basic Size Ref

View full details

R8-C3-T9HDiagram

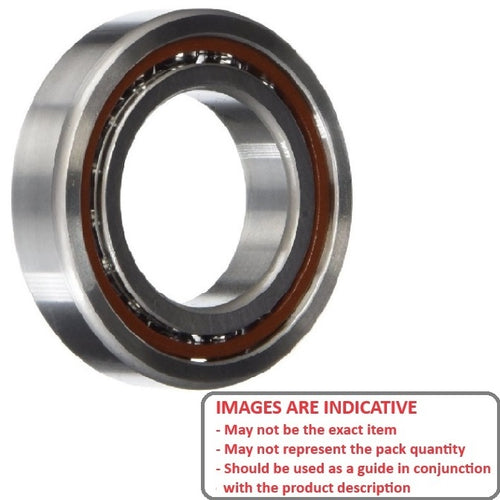

R8-C3-T9HImage
