K-1270-1270-7620AO-Z - Datasheet
ExaktKey
Category Information

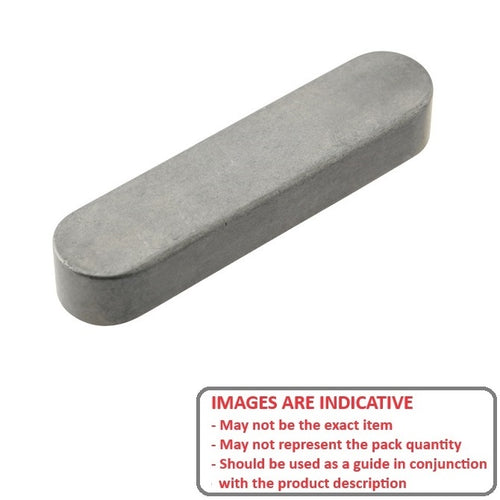

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data

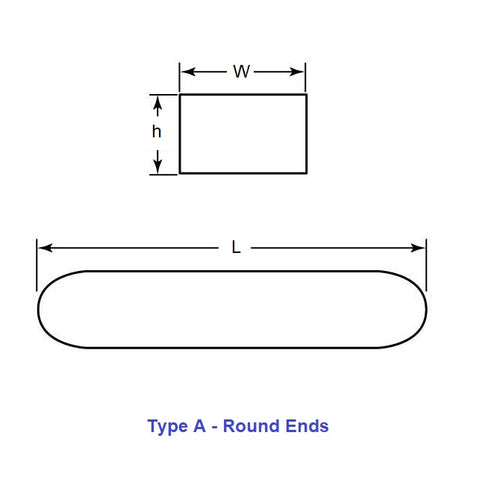

- Width (W)
:
12.70
mm
+ 0.051 / - 0.00
(Equiv. 0.5 in.) - Height (h)
12.70
mm
+ 0.051 / - 0.00
(Equiv. 0.5 in.) - Length (L)
76.20
mm
+ / - 0.25
(Equiv. 3 in.) - Finish Zinc Electroplate
- Tolerance Type Oversized
- End Type A (Rounded Ends)
- Material Carbon Steel C45 Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3705000500-3000
- 37050005003000
