CP-127-127-32-044-R2-SC - Datasheet
MBA
Category Information

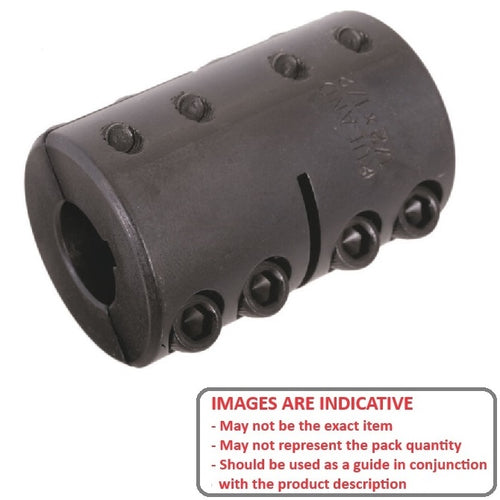

Couplings - Rigid - Clamp - 2 Piece Steel2 Piece Steel Clamp Rigid Couplings. 12L14 Steel
- An expanded range may be available on special order. Please enquire.
- Precision Machined
- High torsional load
- Non marring, easy to install and adjust. Assemble without moving shafts
- Use on hardened shafts, rigid clamp type design, easily machinable
- Black finish with alloy steel cap screws. Available with stepped bores and keyways on 5 week delivery.
Product Data

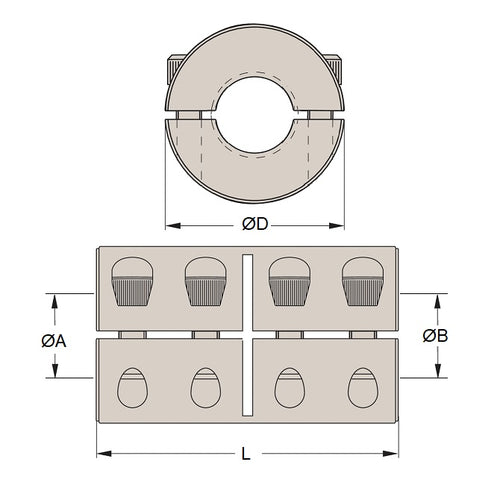

- Bore (b1) : 12.700 mm
- Bore (b2) 12.700 mm
- OD (D) 31.750 mm
- Length (L) 44.450 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® CC-505
- CC505
