TP-127-1143-S4-EE - Datasheet
MBA
Category Information

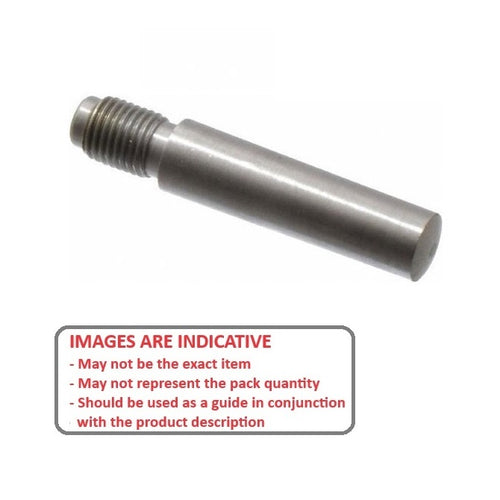

Pins - Taper Imperial - Extractable - External Thread - Stainless SteelStainless Steel External Thread Extractable Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
- Threaded externally for easy extraction.
Product Data

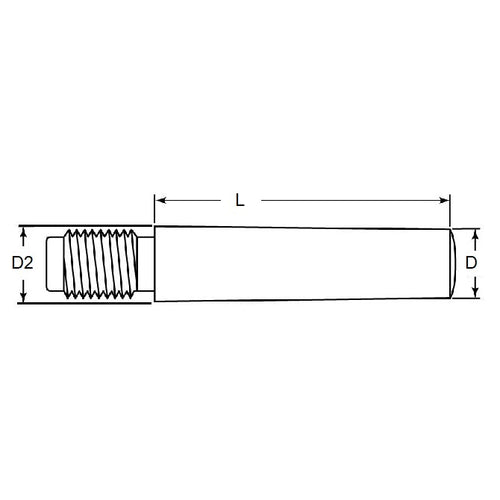

- Nom. Large End Diameter (D2) : 12.70 mm
- Pin Length (L) 114.30 mm
- Nom. Small End Diameter (D) 10.32 mm
- Pin Number 8
- Thread Size 7/16 UNF
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 92284A425
- Huyett® TPTS-08-4500
- NoCor® TPTS-08-4500
- TPTS084500
