PLBP-127-307-S3-080 - Datasheet
MBA
Category Information

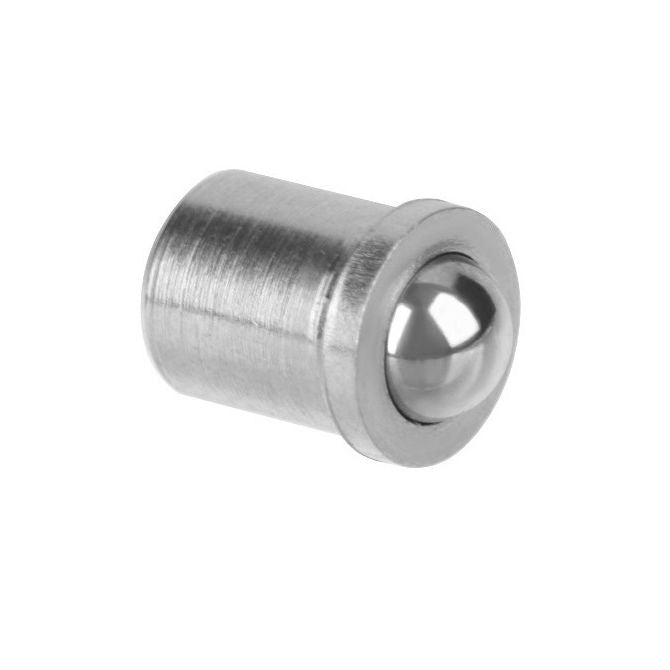

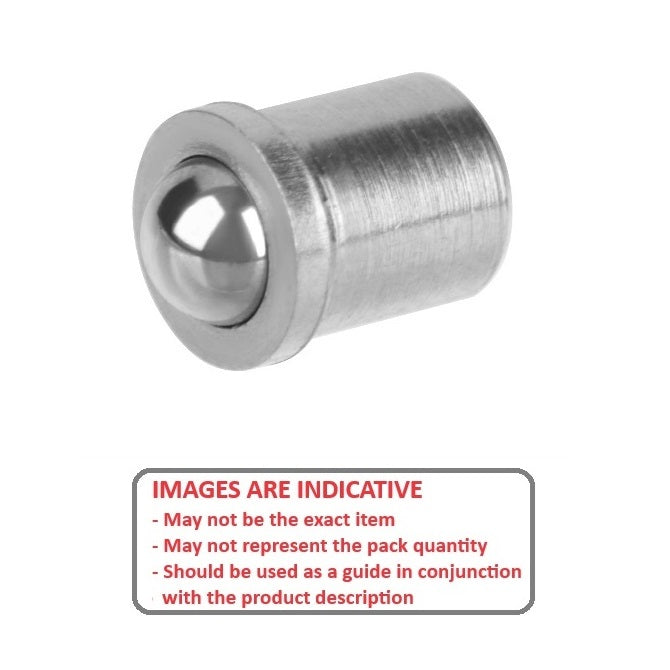

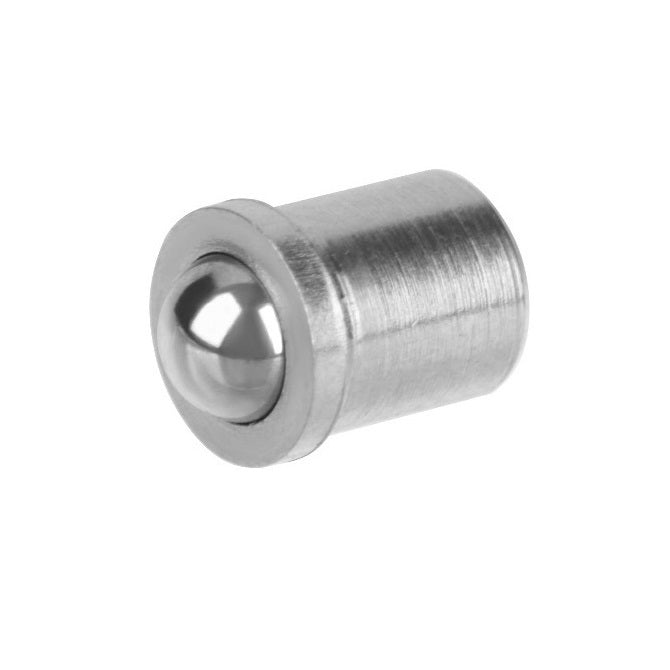

Plungers - Ball Push Fit - Stainless Body - Stainless BallStainless Ball Stainless Body Ball Push Fit Plungers. Unthreaded
- Body BSD: Pom (Delrin) BSD-SS: W.-Nr 1.4305 (303) Stainless Steel.
- Sleeve BSD: Thermoplastic BSD-SS: Stainless Steel.
- Ball: W.-Nr 1.4034 (420) Stainless Steel.
- Spring: W.-Nr 1.4310 (301) Stainless Steel.
- Surface Finish BSD: Ball hardened, bright BSD-SS: Bright.
Product Data

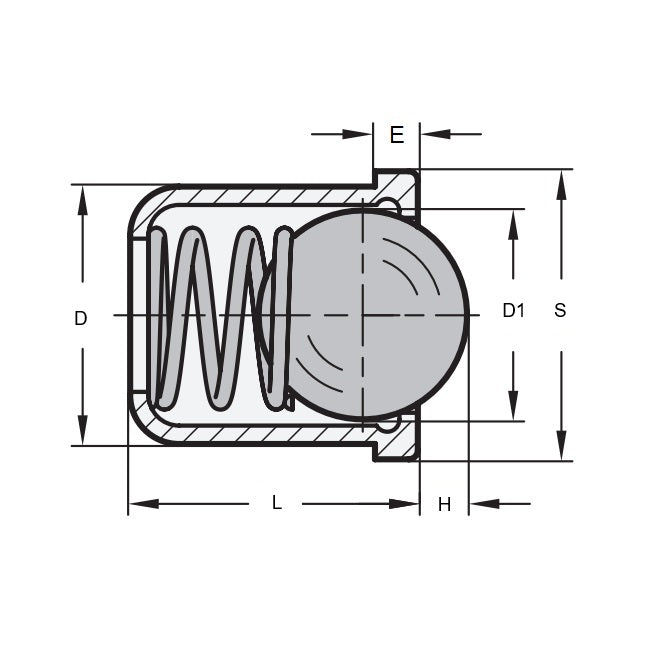

- Body Diameter (D)
:
12.70
mm
+ 0.1 / - 0.0
(Equiv. 0.5 in.) - Length (L)
30.7
mm
(Equiv. 1.209 in.) - Initial Pressure (F1) 35.6 N
- Final Pressure (F2) 80.1 N
- Ball Diameter (D1) 11.1 mm
- Ball Height (H) 4.1 mm
- Shoulder Diameter (S) 17.5 mm
- 17.5
- Weight (Approx) 1 g
- Material Stainless Steel 400 Series Hardened
Product Compliance and Data
Additional Resources
Cross References
- 84895A24
- SPFB-60
- SPFB60
