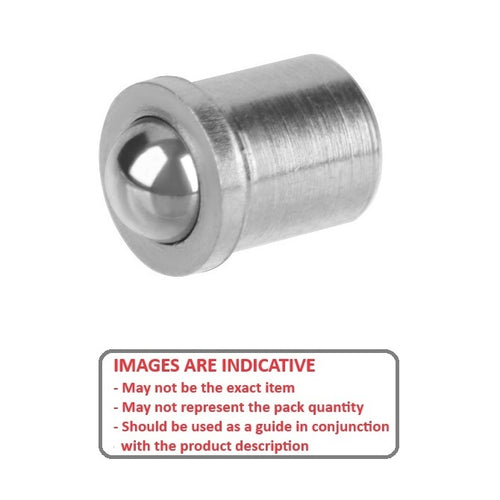

PLBP-127-287-CS-102 - Datasheet

MBA

Product Data

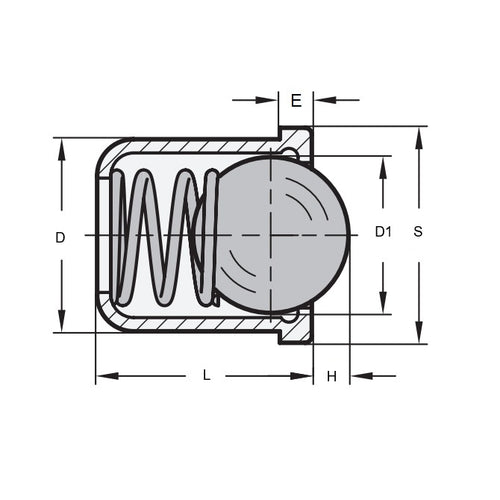

• Body Diameter (D) : 12.70 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.5 in.)
• Length (L) 28.7 mm
  (Equiv. 1.13 in.)
• Initial Pressure (F1) 53.4 N
• Final Pressure (F2) 102.3 N
• Ball Diameter (D1) 11.1 mm
• Ball Height (H) 4.1 mm
• Shoulder Diameter (S) 17.5 mm
• 17.5
• Material Stainless Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Spring Plungers

• Threaded Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 84835A26
• PFB205
• PFB-205
