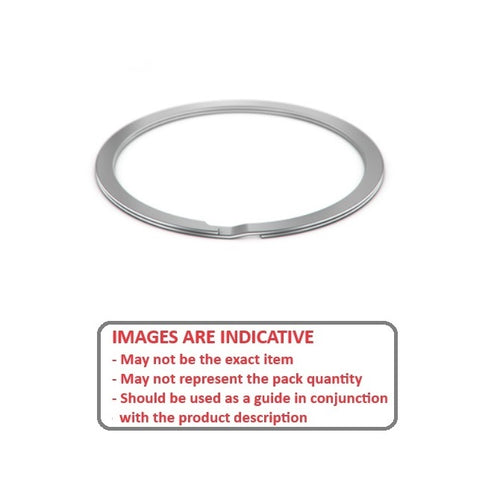

Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel

Stainless Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Stainless Steel.

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

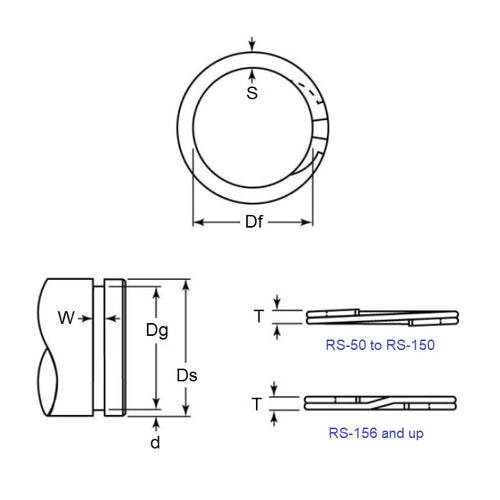

Product Data

  • Shaft Diameter (Ds) : 12.70 mm
    (Equiv. 0.5 in.)
  • Clip Thickness (T) 0.64 mm +/- 0.06
    (Equiv. 0.025 in.)
  • Groove Dia. (Dg) 12.04 mm
    (Equiv. 0.474 in.)
  • Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33
  • Radial Wall (S) min/max 1.14 mm +/- 0.10
  • Groove Width (W) 0.80 mm +/- 0.05
  • Approx. Loose Clip OD 14.22 +/- 0.04
  • Groove Depth (d) 0.33
  • Material Stainless Steel 302/304 (Similar to A2, 18-8)
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 93513A110
  • NoCor WS-050-S02
  • Smalley WS-050-S02
  • WS050S02
