IDC-177RS - Datasheet
MBA
Category Information
Threaded Rod - Shoulder StudsShoulder Studs Threaded Rod. Machine shoulder studs can be used with idlers or tensioner arms
Product Data

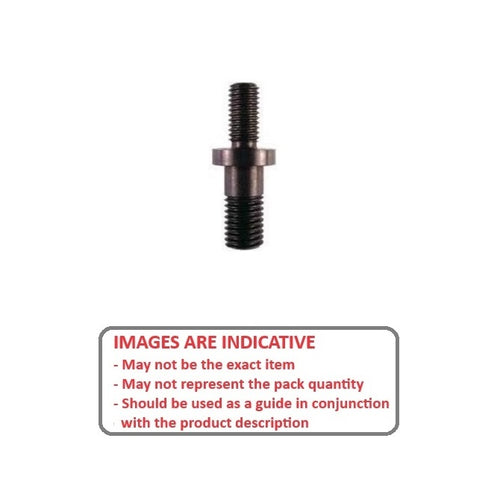

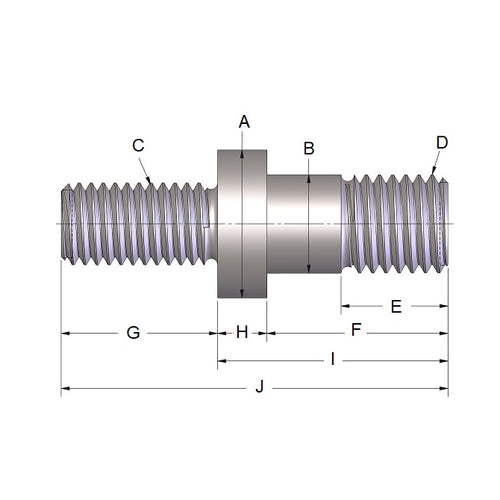

- Shoulder Diameter (B)
:
12.700
mm
(Equiv. 0.5 in.) - Thread Size (D) Shoulder End 1/2-13
- Thread Length (E) Shoulder End
15.88
mm
(Equiv. 0.625 in.) - Thread Size (C) 3/4-16 UNF (19.05mm)
- Thread Length (G) 22.225 mm
- F 38.100 mm
- J 66.675 mm
- Flange Diameter (A) 28.575 mm
- I 44.450 mm
- H 6.35 mm
- Material Carbon Steel
