CLP-127-0762-CZ-HB - Datasheet
MBA
Category Information

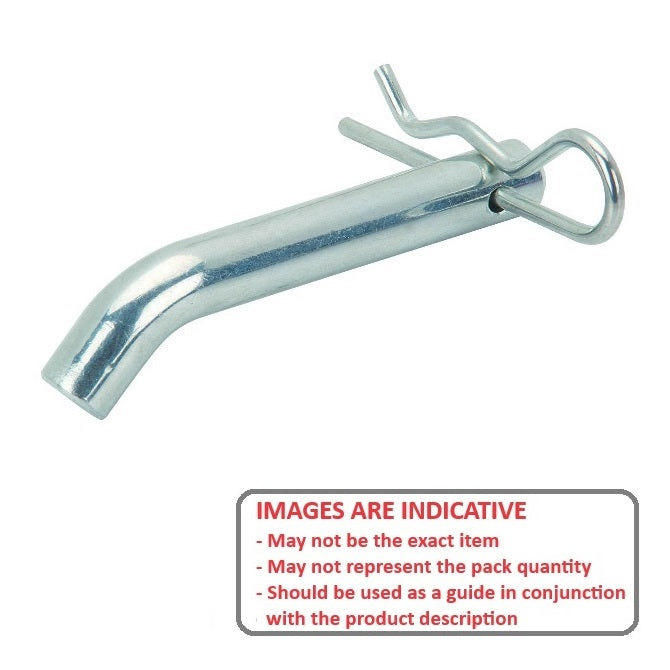

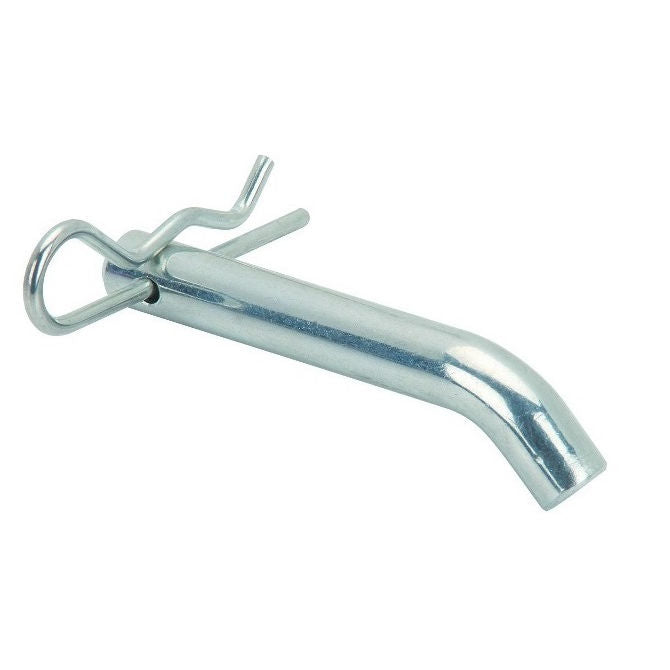

Pins - Clevis - Handle - Bent - Pin LockingPin Locking Bent Handle Clevis Pins. Also known as Hitch Pins. Heat treated.
- Non-threaded fastener with a head on one end and a hole/groove on the other, used to connect two or more parts in a way that allows for rotation, similar to a bolt, by passing through aligned holes.
- A retaining pin, such as a cotter pin, E-clip or R-clip, is inserted into the hole/groove at the end to keep the clevis pin secured in place.
- Bent at a 15o angle
- Includes zinc plated R-Clip
Product Data

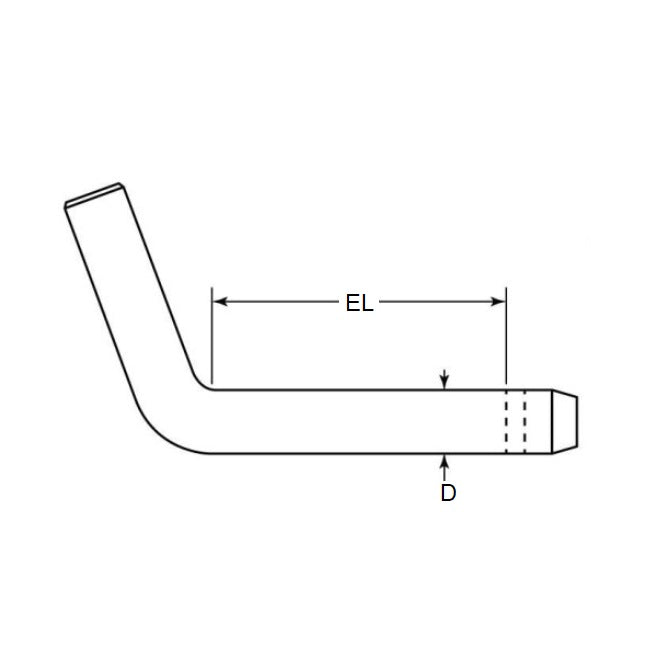

- Nominal Pin Diameter (D)
:
12.70
mm
- 0.10 / - 0.23
(Equiv. 0.5 in.) - Grip Length (EL)
76.20
mm
+ 0.51 / - 0.00
(Equiv. 3 in.) - Pin Finish Zinc Plated
- 3.8
- Handle Finish RCL-032-065-Z
- Handle Material Zinc Plated
- Material Carbon Steel Heat Treated
