REM-127-R-CB - Datasheet
MBA
Category Information

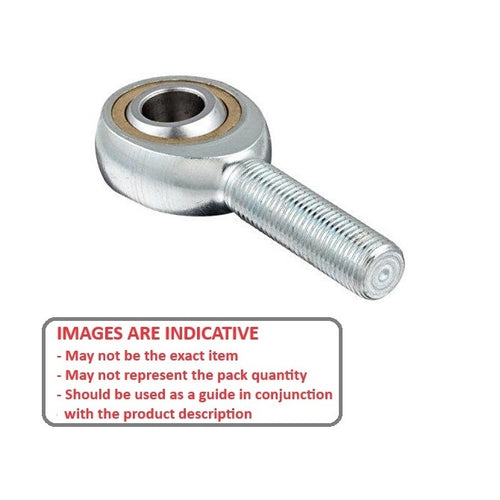

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
12.7
mm
(Equiv. 0.5 in.) - Overall Length (L)
78.59
mm
(Equiv. 3.094 in.) - Thread Size 1/2-20 UNF Right
- Min. Thread Length (l2) 38.10 mm
- Head Width (W) 12.70 mm
- Eye Width (W1) 15.88 mm
- Head Diameter (D) 33.32 mm
- Centre Height (l1) 61.93 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K124-RIGHT
- MTR BIM-81-2
- ASAHI JAMB8
- KWK KMB8
- IKO POSB8
- NTN SMI-B8
- SMIB8
- BIM812
- 6072K124RIGHT
