REF-127-R-CB - Datasheet
MBA
Category Information

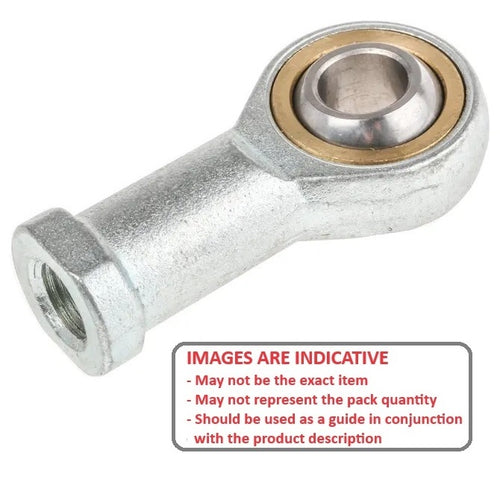

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

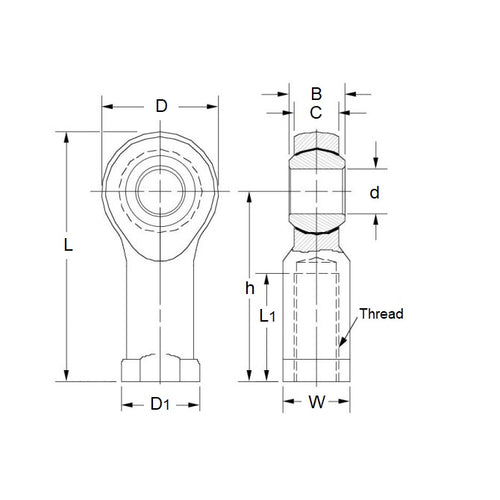

Product Data
- Eye Size : 12.7 mm
- Overall Length 70.64 mm
- Thread Size 1/2-20 UNF Right
- Thread Length 30.15 mm
- Head Width 12.70 mm
- Eye Width 15.88 mm
- Head Diameter 33.32 mm
- Centre Height 53.98 mm
- Grease Nipple No
- Body Width / Flange Width 19.05 / 22.23 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K212-RIGHT
- ASAHI® JAFB8
- KWK KFB8
- IKO PHSB8
- Nachi® PHSB-8
- NTN® SFI-B8
- 6072K212RIGHT
- SFIB8
