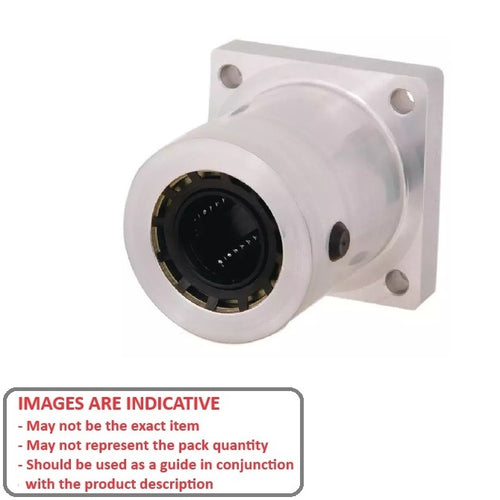

LCHF-0127-043-TS - Datasheet

MBA

Product Data

• Nominal Diameter : 12.70 mm
  (Equiv. 0.5 in.)

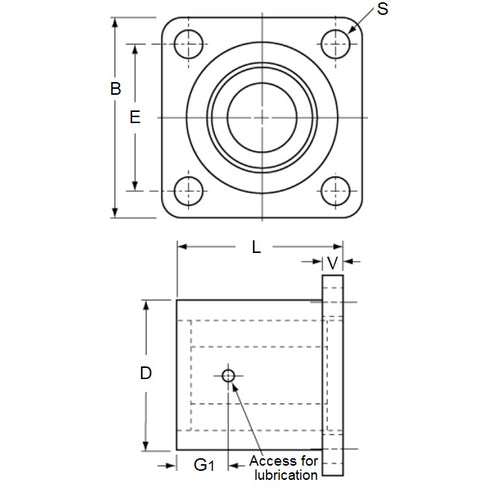

• Flange Length and Width (B) 41.40 mm
  (Equiv. 1.63 in.)
• Bolt Distance and Dia. (S x E) 4.8 x 31.75 mm
  (Equiv. 0.189 in.)
• Length (L) 42.93 mm
• Width (D) 31.75 mm
• Flange Height (V) 6.35 mm
• Lube Hole Distance (G1) 18.29 mm
• Type Single
• Dynamic Load Capacity 118 kgf

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• TLM-805
• TLM805
