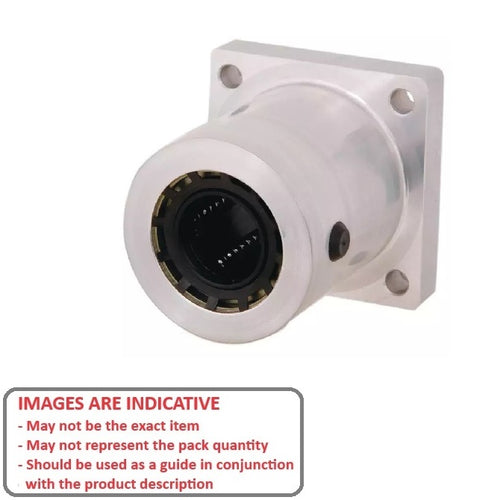

LCHF-0127-081-TS - Datasheet

MBA

Product Data

• Nominal Diameter : 12.70 mm
  (Equiv. 0.5 in.)

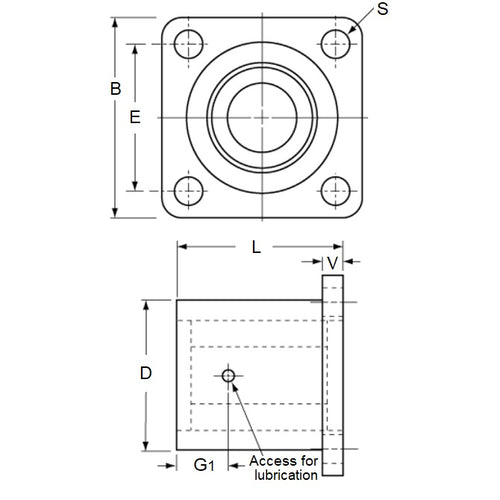

• Flange Length and Width (B) 41.40 mm
  (Equiv. 1.63 in.)
• Bolt Distance and Dia. (S x E) 1/4-20 x 31.75 mm
  (Equiv. 0.039 in.)
• Length (L) 81.28 mm
• Width (D) 31.75 mm
• Flange Height (V) 22.86 mm
• Lube Hole Distance (G1) 37.59 mm
• Type Twin
• Dynamic Load Capacity 237 kgf

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
