0R-0127-0152-ALC-T30 - Datasheet
MBA
Category Information

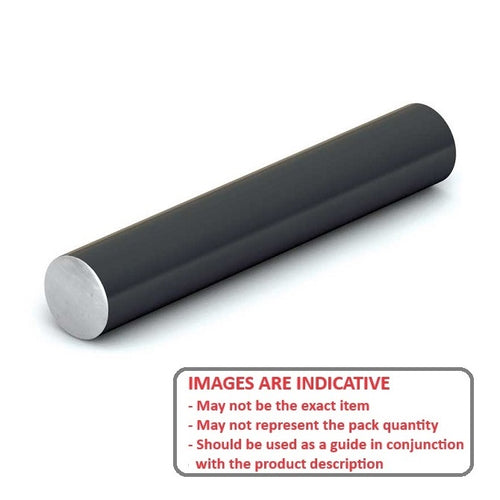

Shafting - Linear - Aluminium - Ceramic Coated - UntappedUntapped Ceramic Coated Aluminium Linear Shafting. Recommended for use with Frelon Gold linear bearings. Aluminium 6061-T6 with ceramic coated finish. Ceramic coat has rockwell hardness of 70C. No magnetic and vibration reseistant.
- Weld spatter, contaminants and paints will not stick.
- Do not use with ball bearings. Use with Frelon lined or similar plain bearings only.
- Shaft ends are not coated
Product Data

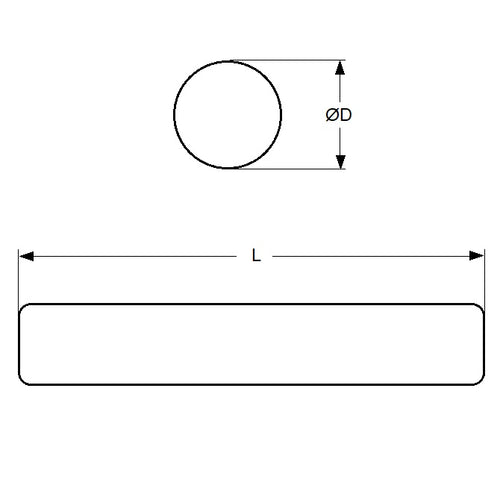

- Outside Diameter
:
12.700
mm
- 0.010 / - 0.030
(Equiv. 0.5 in.) - Length
152.4
mm
(Equiv. 6 in.) - Material Ceramic Coated Aluminium
Product Compliance and Data
Additional Resources
Cross References
- 1031K11
- PBC1048
- PBC-1048
