Cross Blocks - Single Knob and Nut

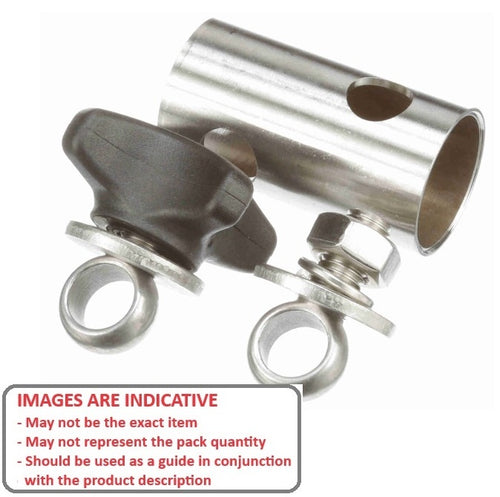

Single Knob and Nut Cross Blocks. Used for connecting two round rods at 90o.

  • Adjustments can be made by loosening the hand knob. Plastic knobs function independently for precise adjustment.
  • Knobs have brass insert for easy turning and to prevent galling. Stainlesss steel eye bolt firmly clamps around adjusting rod for superior holding strength.
  • Eyelet does not mar rod when tightened, resulting in smooth rod surface that easily slides through the cross block.
  • No set screws required. Plastic or Stainless bodies accept 12.70 or 15.88mm rods.

Product Data

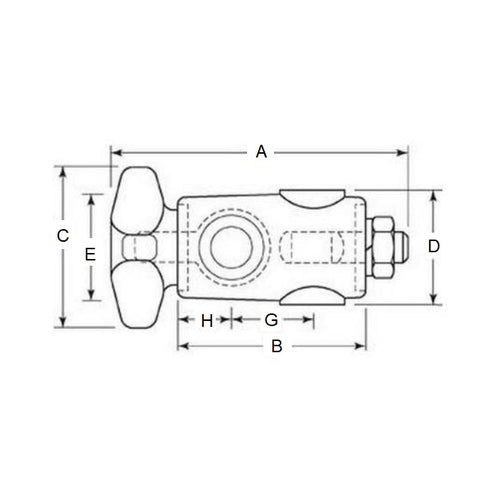

  • Rod Size : 12.70 x 12.70 mm
    (Equiv. 0.5 in.)
  • Overall Length (A) 96.520 mm
    (Equiv. 3.8 in.)
  • Body Length (B) 58.674 mm
    (Equiv. 2.31 in.)
  • Body Diameter (E) 31.750 mm
  • H 16.764 mm
  • G 25.400 mm
  • Knob Size (C) 50.800 mm
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: US
