REM-120-L-CB - Datasheet
MBA
Category Information

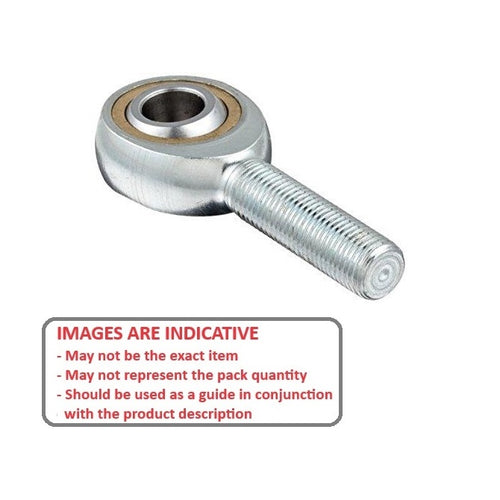

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

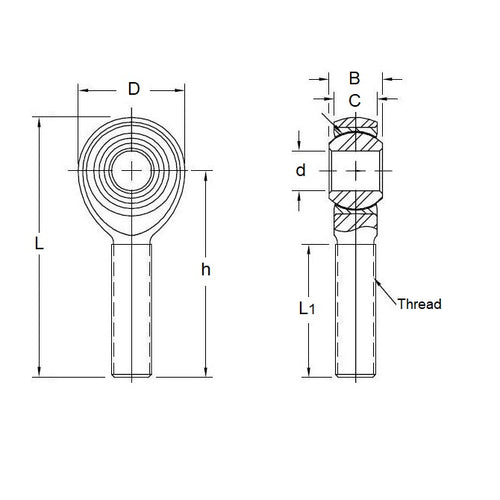

Product Data
- Eye Size (d1)
:
12
mm
(Equiv. 0.472 in.) - Overall Length (L)
69.00
mm
(Equiv. 2.717 in.) - Thread Size M12x1.75 Left
- Min. Thread Length (l2) 33.00 mm
- Head Width (W) 12.00 mm
- Eye Width (W1) 16.00 mm
- Head Diameter (D) 30.00 mm
- Centre Height (l1) 54.00 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- RINO BEM-12-LH
- Misumi E-GYWL12
- ASAHI JAM12L
- KWK KM12L
- IKO POS12L
- Nachi POS-12L
- NTN SMI-12L
- SMI12L
- EGYWL12
- BEM12LH
