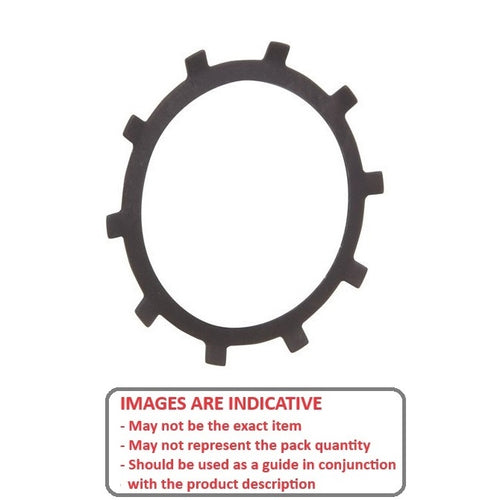

RPI-127-128-C - Datasheet

MBA

Product Data

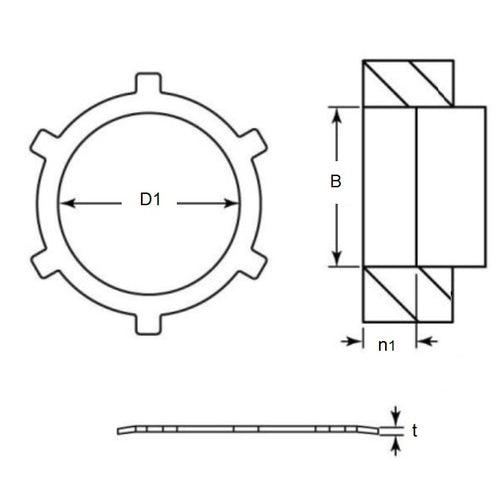

• Housing Bore (B) Min : 12.65 mm
• Housing Bore (B) Max 12.75 mm
• Inside Clearance (D1) 6.55 mm _{+ / - 0.26}
  (Equiv. 0.258 in.)
• Thickness (t) 0.25 mm +/- 0.03
• Recommended Depth (n1) 1.02 mm
• Thrust Load 829 kg.cm
• Material Carbon Spring Steel Self Finish

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• 98435A138
• Truarc® C23163
• Small Parts RSI-8
• Huyett® TI-050
• NoCor® TI-050
• RSI8
• TI050
• N1305-0050APP
• N1305-0050-APP
• N13050050APP
