REF-120-L-CB - Datasheet
MBA
Category Information

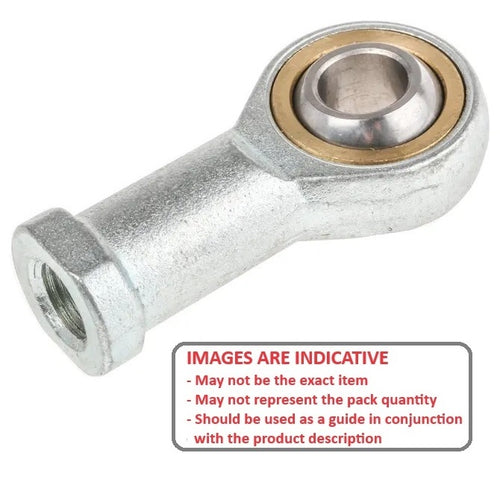

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

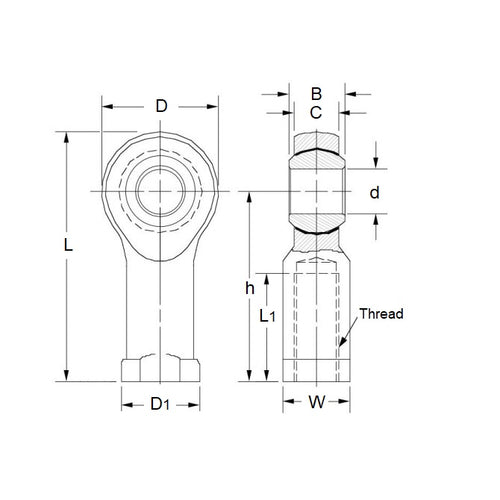

Product Data
- Eye Size : 12 mm
- Overall Length 65.00 mm
- Thread Size M12x1.75 Left
- Thread Length 24.00 mm
- Head Width 12.00 mm
- Eye Width 16.00 mm
- Head Diameter 30.00 mm
- Centre Height 50.00 mm
- Grease Nipple Yes
- Body Width / Flange Width 19.00 / 22.00 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi® E-GYNL12
- ASAHI® JAF12L
- KWK KF12L
- IKO PHS12L
- Nachi® PHS-12L
- NTN® SFI-12L
- EGYNL12
- SFI12L
