CP-123-381-64-004-R1-SC - Datasheet

MBA

Category Information

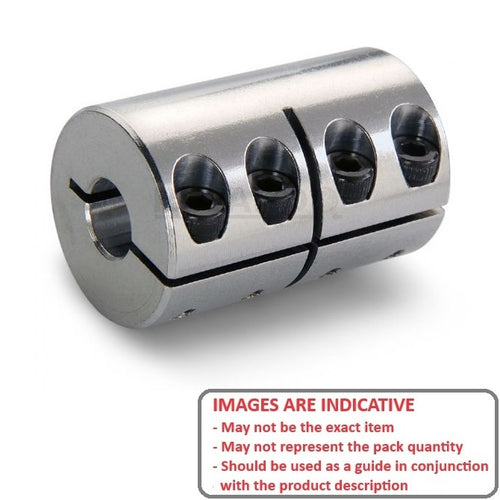

Couplings - Rigid - Clamp - 1 Piece - Steel

Steel 1 Piece Clamp Rigid Couplings. 12L14 Steel

  • An expanded range may be available on special order. Please enquire.

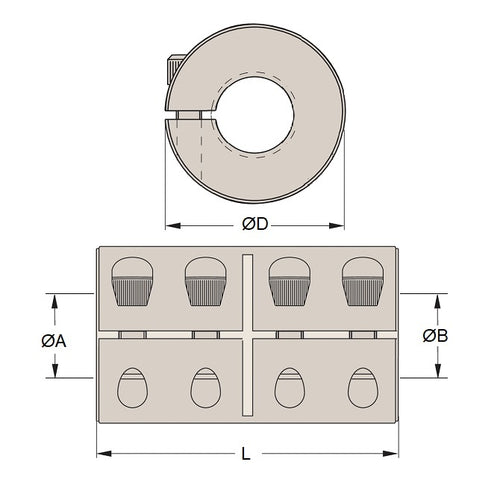

Product Data

  • Bore (b1) : Pilot Bore 12.319 mm
  • Bore (b2) 38.100 mm
  • OD (D) 63.500 mm
  • Length (L) 95.25 mm
  • Screw 1/4-28 x 15.87 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® CC-158
    • CC158
    View full details
    CP-123-381-64-004-R1-SCDiagramCP-123-381-64-004-R1-SCImage
