FL-12-W300 - Datasheet
MBA
Category Information

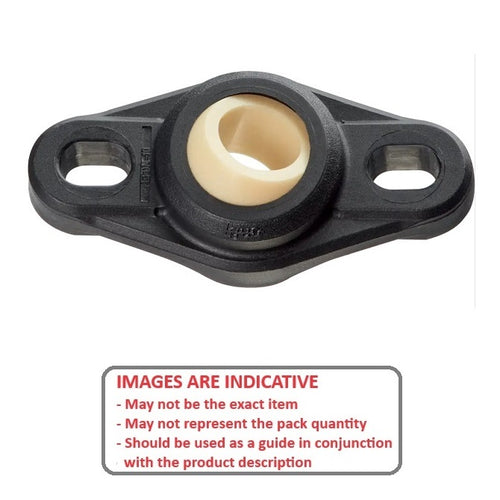

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - W300W300 Self Aligning Flanged 2 Bolt Housing Assembly. With integral self aligning plain bearing.
- Housing: Igumid G.
- Ball: Highly wear resistant Iglidur W300.
Product Data
- Nominal Shaft Size
:
12.00
mm

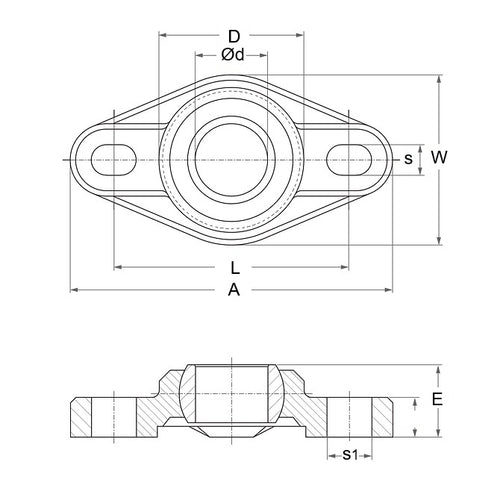

(Equiv. 0.472 in.) - Overall Length (A)
41.000
mm
(Equiv. 1.614 in.) - Overall Height (E) 13.000 mm
- Min to Max Shaft Dia. 21 mm
- Base Height (D) 7.000 mm
- Bolt Hole Size (s) 5.3 x 8.0 mm
- Bolt Hole Centres (L) 31.000 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus EFOM-12
- EFOM12
- I705
- I-705
