PTGSG-12X3-01-R-1000-ES - Datasheet
Iglidur
Category Information

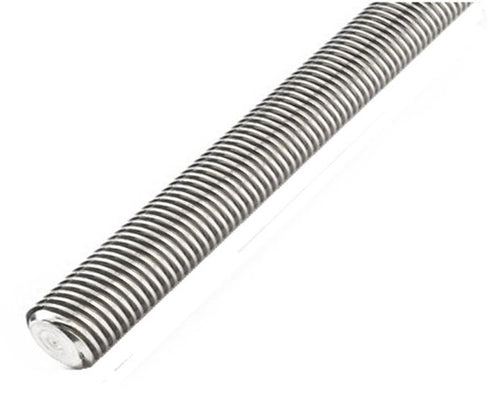

Leadscrew - Length - Metric - Stainless Steel - Rolled ThreadRolled Thread Stainless Steel Metric Length Leadscrew. Trapezoidal thread design. Use with metric leadscrew nuts listed in separate category.
- Stainless steel
- For power transmission and continuous use always use bronze nuts - never steel.
- Nuts and screws should always be lubricated with grease or oil.
- Steel nuts with steel screws should only be used for hand motion.
- Efficiency Guide 20 percent with lubrication for single start.

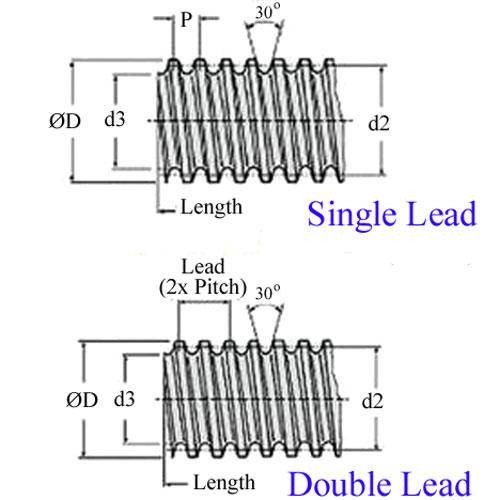

Product Data
- Overall Diameter (D) : 12.000 mm
- Lead / Pitch (P)
3
mm
+ 0.3 / 300
(Equiv. 0.118 in.) - Direction Right Hand
- Starts Single
- Length 1000 mm + 0.5 / - 0.0
- Pitch Angle 4.55 °
- Straightness 0.3mm Per 300mm
- Spec DIN 103 7e
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
