P-6001-PPGL - Datasheet

KMS

Category Information

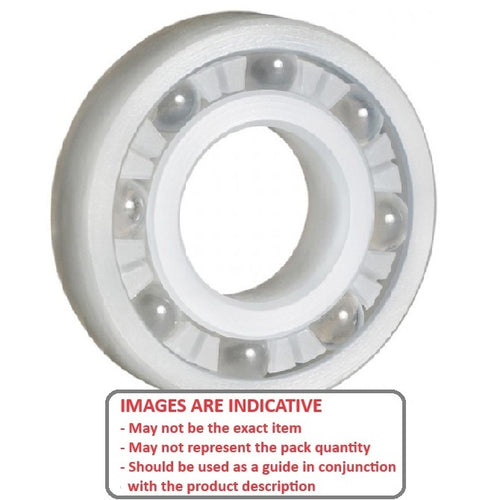

Bearings - Plastic - Polypropylene - Glass Balls

Glass Balls Polypropylene Plastic Bearings. Good chemical, thermal and electrical properties with moderate strength, Not UV stabilised, but meets FDA standard and is USDA approved.

  • Plastic bearings, also known as polymer bearings, are bearings made from various types of plastics or polymer materials. Used in a wide range of applications across different industries where traditional metal bearings may not be suitable.
  • These bearings offer unique advantages such as corrosion resistance, low friction, lightweight construction, and non-magnetic properties. Uses include Food and Beverage Industry, Medical and Laboratory Equipment, Chemical Industry,HVAC Systems.
  • Plastic ball bearings do not use the same precision standards as those for precision ball bearings. An expanded range may be available on special order. Please enquire.
  • Races made from Polypropylene - Balls made from Ground Glass - Cages from polypropylene.
  • Lubrication - Water Lubrication or can be run dry
  • Max Temperature - 60 oC Continuous.

Product Data

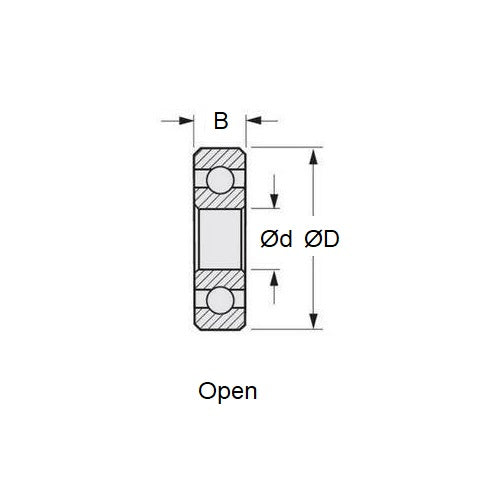

  • ID (d) : 12.000 mm + 0.076 / - 0.000
    (Equiv. 0.472 in.)
  • OD (D) 28.000 mm + 0.000 / - 0.102
    (Equiv. 1.102 in.)
  • Width (B) 8.000 mm + 0.127 / - 0.000
    (Equiv. 0.315 in.)
  • Max RPM in Air 1142
  • Notes Unlubricated
  • Type Radial
  • Dynamic Load Rating 24.9 Kg
  • Static Load Rating 19.5 Kg
  • Material Polyproylene with Glass Balls
Country of Origin: TW
