6001-Z-C3-T9H-AF12-E - Datasheet
WIB
Category Information
Bearings - Single Row Ball - Unflanged - Precision - High Speed CageHigh Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Bearings in this group have various types of high speed cages.
- Speed ratings range from 20 percent to 80 percent increase on standard cage types.
- See individual datasheets, available on request.
- Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
- This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid
Product Data

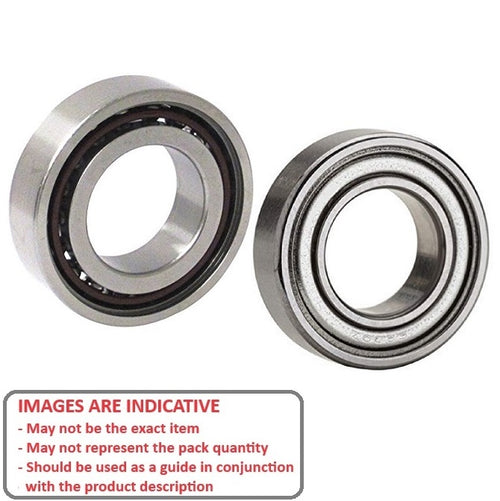

Deleted Item. Available while stocks last. 12-28-8 bearing with High Speed Polyamide Cage, Single Shield and increased clearance.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

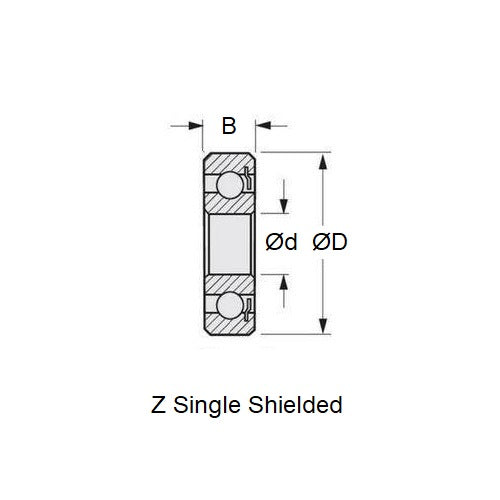

- ID (d)
:
12.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.472 in.) - OD (D)
28.000
mm
+ 0.000 / - 0.010
(Equiv. 1.102 in.) - Width (B)
8.000
mm
+ 0.000 / - 0.125
(Equiv. 0.315 in.) - Precision Grade Abec 1
- Closure Type Z
- Bearing Type Radial
- Made In European WIB/GRW
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part 6001
- Limiting Speed 51200
- Cage Type Polyamide
- Static Load Rating KGf 244
- Dynamic Load Rating KGf 521
- Radii 0.30 mm
- Inner Shoulder (UI) 17.20mm
- Outer Shoulder (UO) 25.50 mm
- Number of Balls 8
- Clearance C3 (11 to 25)
- Precision Grade Abec 1
- Closure Type Z
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- CMB - 90 Grand Prix - Front Bearing 12-28-8mm
- CMB - 90 Grand Prix - Rear Bearing 12-28-8mm
- CMB - CAM 45 - Rear Bearing 12-28-8mm
- Enya - 120GP - Front Bearing 12-28-8mm
- Enya - 53 - 4 Stroke - Rear Bearing 12-28-8mm
- Enya - R120 - 4 Stroke - Front Bearing 12-28-8mm
- Enya - R90 - 4 Stroke - Front Bearing 12-28-8mm
- HP - 49 VT - Rear Bearing 12-28-8mm
- Mac - 45 - Rear Bearing 12-28-8mm
- Moki - 1.5 25CC - Front Bearing 12-28-8mm
- Nelson - 7.5 - 45 - Rear Bearing 12-28-8mm
- OPS - 90 - Front Bearing 12-28-8mm
- OS - 140 RX - 2 Stroke - Front Bearing 12-28-8mm
- OS - 160 RX - 2 Stroke - Front Bearing 12-28-8mm
- OS - 3500 - Front Bearing 12-28-8mm
- OS - F52H - 4 Stroke - Rear Bearing 12-28-8mm
- OS - FS52S - 4 Stroke - Rear Bearing 12-28-8mm
- OS - FS90 - 4 Stroke W-Muffler - Rear Bearing 12-28-8mm
- OS - FT240 -FT300 TW RC - 4 Stroke - Front Bearing 12-28-8mm
- Picco - 45 EXR - 2 Stroke - Rear Bearing 12-28-8mm
- Picco - 67 - 2 Stroke - Rear Bearing 12-28-8mm
- Picco - 80 Marine - 2 Stroke - Rear Bearing 12-28-8mm
- Picco - 90 Marine - 2 Stroke - Front Bearing 12-28-8mm
- Rossi - 65 -80 Marine - 81 DF - Rear Bearing 12-28-8mm
- Rossi - 90 Old - Front Bearing 12-28-8mm
- Saito - 40 -45 -50 Quickie - Rear Bearing 12-28-8mm
- Super Tigre - G45 4 - Front Bearing 12-28-8mm
- Super Tigre - S65 - 2 Stroke - Rear Bearing 12-28-8mm
- Super Tigre - X40 - Rear Bearing 12-28-8mm
- Webra - 2.2 Bully 35CC - Front Bearing 12-28-8mm
- Webra - 2.2 Bully 35CC - Rear Bearing 12-28-8mm
- Webra - 40 - Rear Bearing 12-28-8mm
- Webra - 80 DF - Rear Bearing 12-28-8mm
- Zenoah - G23 - Front and Rear Bearing 12-28-8mm
Cross References
- WIB 6001-Z-T9H-C3-WW-Safecoat66
- GRW SS6001-Z-C3GPRTHBL001
- SS6001ZC3GPRTHBL001
- 6001ZT9HC3WWSafecoat66
- 6001T9HZC3AF12E
- 6001 Basic Size Ref
