W0120-FP-020-0500-CL - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

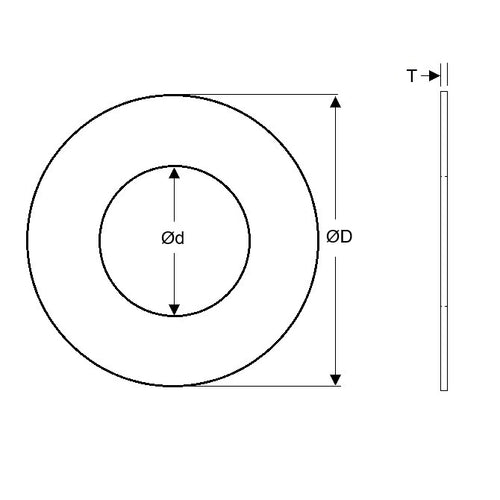

• ID (d) : 12.000 mm _{+ 0.05 / + 0.23}
  (Equiv. 0.472 in.)
• OD (D) 20.000 mm _{- 0.05 / - 0.23}
  (Equiv. 0.787 in.)
• Length (L) 5.000 mm _{+ /- 0.05}
  (Equiv. 0.197 in.)
• Rockwell B 80 Min
• Precision
• 12.05
• Material Carbon Spring Steel Self Finish

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Flat Washers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• A 7C 8MC1220050
• W0120FP020050C
• W0120FP020050CL
• A7C8MC1220050
