TPM-1200-10000-EI - Datasheet
MBA
Category Information

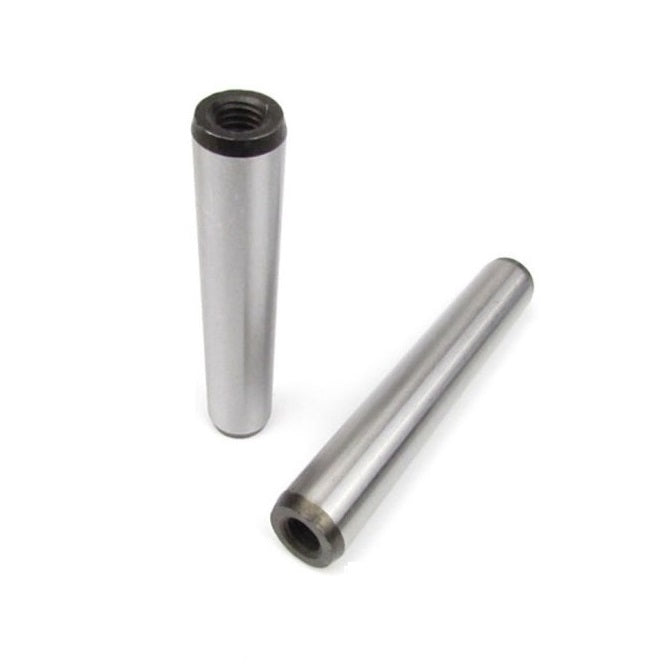

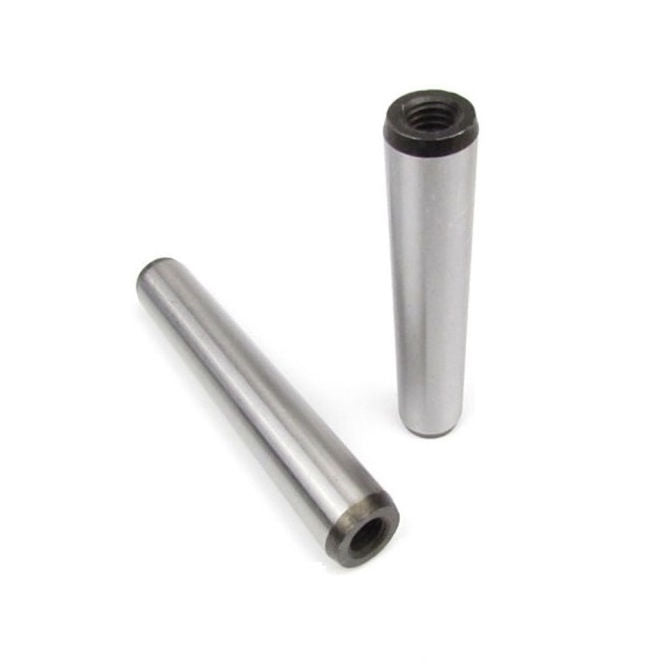

Pins - Taper Metric - Extractable - Internal ThreadInternal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.
- An expanded range may be available on special order. Please enquire.
- DIN 7978.
Product Data
- Nom. Small End Diameter (D)
:
12.00
mm
(Equiv. 0.472 in.) - Length (L)
100.00
mm
(Equiv. 3.937 in.) - Nom. Large End Diameter (D2)
14.00
mm
(Equiv. 0.551 in.) - Thread Size M8
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- TPM120010000EX
- TPX12100
- TPX12-100
