SHLD120-050-SKT-S6 - Datasheet
MBA
Category Information

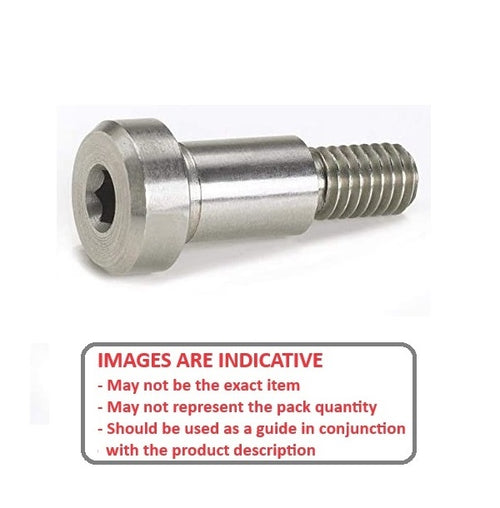

Screws - Shoulder - Socket Head - 316 Stainless316 Stainless Socket Head Shoulder Screws. 316 Stainless Steel
- Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
Product Data

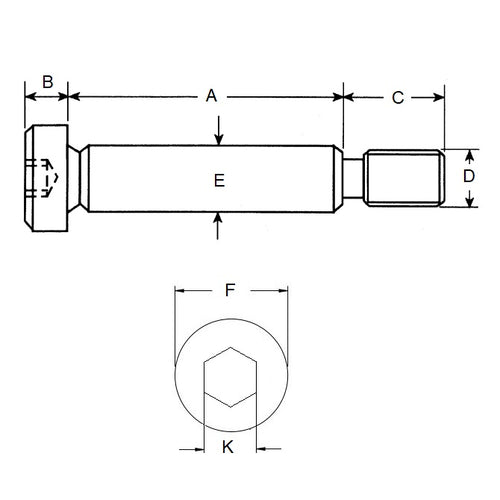

- Shoulder Diameter (E)
:
12.000
mm
- 0.072 / - 0.010
(Equiv. 0.472 in.) - Shoulder Length (A)
50.000
mm
(Equiv. 1.969 in.) - Thread (D) M10x1.5
- Max. Thread Length (C) 16.00 mm
- Head Height (B) 9.00 mm
- Head Diameter (F) 18.00 mm
- Allen Key Size 6.00 mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90269A177
