Category Information

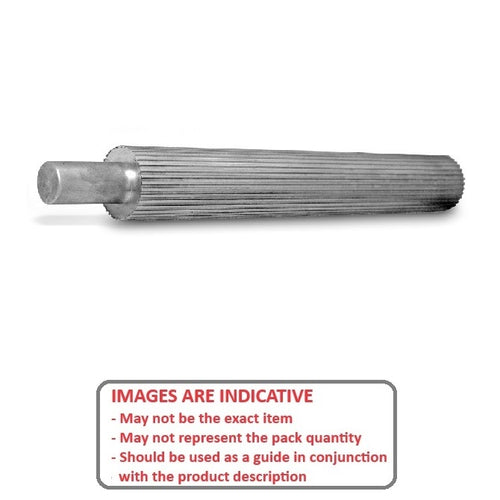

Pulleys - Metric Timing Stock - 2.000mm Pitch - GT - AluminiumAluminium GT 2.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
- Use with GT2 or GT3 type belts.

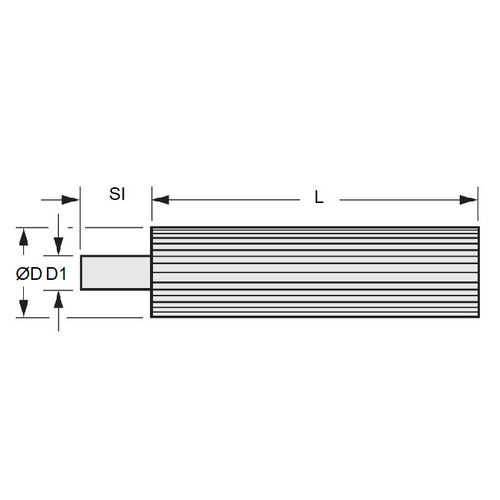

Product Data
- Number of Teeth : 11
- Min. Usable Length (L)
50.0
mm
(Equiv. 1.969 in.) - Pitch Diameter (PD)
7.00
mm
(Equiv. 0.276 in.) - Outside Diameter (OD) 6.50 mm
- Shank Diameter (D1) 8.00 mm
- Shank Length (Sl) 25.0 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 11-2P-PS2A
- A6A50M011GT05
- 112PPS2A
