MR2111-T9H-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - High Speed CageHigh Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Bearings in this group have various types of high speed cages.
- Speed ratings range from 20 percent to 80 percent increase on standard cage types.
- See individual datasheets, available on request.
- Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
- This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid
Product Data

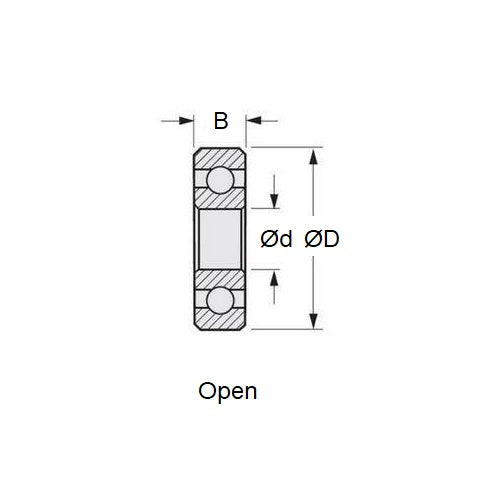

- ID (d)
:
11.000
mm
(Equiv. 0.433 in.) - OD (D)
21.000
mm
(Equiv. 0.827 in.) - Width (B)
5.000
mm
(Equiv. 0.197 in.) - Precision Grade Economy
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR2111
- Limiting Speed 27550
- Cage Type Polyamide
- Static Load Rating KGf 77.9
- Dynamic Load Rating KGf 166.2
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- HPI - RSC Pro - 4.6 CC - Bearing 11-21-5mm
- K.B - SS Outboard Marine Engine - 0.15 - Bearing 11-21-5mm
- Mugen - MT - 3.6 - Bearing 11-21-5mm
- Nova Rossi - CR12PR2/N Rex - 60 10CCSL - Bearing 11-21-5mm
- Nova Rossi - CR12PS1/N Rex - 60 10CCSL - Bearing 11-21-5mm
- Nova Rossi - CR12PS2/N Rex - 60 10CCSL - Bearing 11-21-5mm
- Nova Rossi - CR12R1/N Rex - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CR12R2/N Rex - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CR12S1/N Rex - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CT12PR1/N Rex - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CT12PR1/N Top - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CT12PR2/N Top - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CT12PS1/N Top - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CT12PS2/N Top - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CT12R2/N Top - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CT12RS1/N Top - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CT12S1/N Top - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CT12S2/N Top - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CX12 - Rear Bearing 11-21-5mm
- Nova Rossi - CX12PR1/N - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CX12PR2/N - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CX12PS1/N - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CX12PS2/N - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CX12R1/N - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CX12R2/N - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CX12S1/N - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - CX12S2/N - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - ET Top - 15 2.5CC - Bearing 11-21-5mm
- Nova Rossi - MX12PR - 12 - Bearing 11-21-5mm
- Nova Rossi - RS12 - Rear Bearing 11-21mm
- Nova Rossi - RS12TS1 - 12 2.1CC - Bearing 11-21-5mm
- Nova Rossi - SX - 21 3.5CC - Bearing 11-21-5mm
- OS - CV-R - 12 - Bearing 11-21-5mm
- OS - TR - 18 - Bearing 11-21-5mm
- OS - TR P- Turbo Head - 18 - Bearing 11-21-5mm
- OS - TR S With 10M - 21 - Bearing 11-21-5mm
- OS - TR With 10J - 21 - Bearing 11-21-5mm
- OS - TR With 10M - 12 - Bearing 11-21-5mm
- OS - TR-R Spec - 12 - Bearing 11-21-5mm
- RB - 15 Small BLOCK - 32 - Bearing 11-21-5mm
- RB - 32 - Bearing 11-21-5mm
- RB - X - 21 - Bearing 11-21-5mm
Cross References
- NOVA ROSSI 16601
- MR2111
- MR2111 Basic Size Ref
