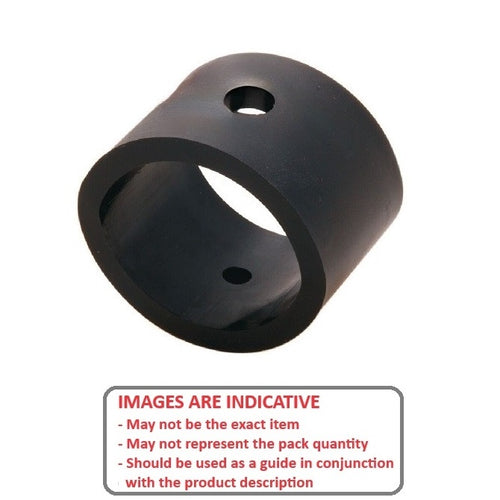

GBR-5RS - Datasheet
MBA
Category Information
Bumpers - Elastomer - Radial - Low Energy - Longer - Soft StopSoft Stop Longer Low Energy Radial Elastomer Bumpers. Elastomer bumpers provide excellent resistance to chemicals and humidity. 20 times greater durability than urethane.
- 10 greater durability than rubber and 500 times greater than steel coiled springs. Also see Mounts - Buffers
- Maintains excellent resilience at extreme temperatures and remains flexible with no material degradation between -62 oC and +148 Deg C (-80 Deg F and +300 Deg F)
- Mounting screws not included.
Product Data
- Peak Force : 890 N

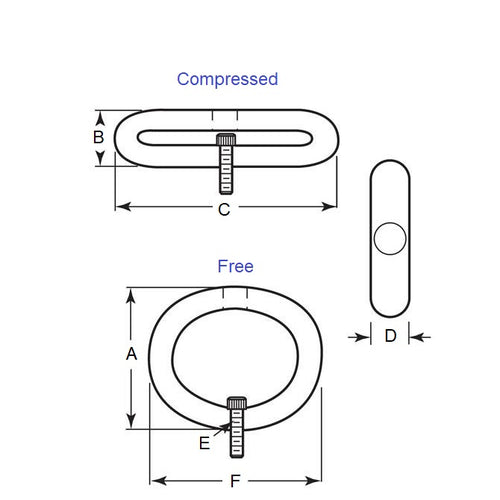

- Free Height (A)
55.1
mm
+/- 1.6
(Equiv. 2.169 in.) - Free Bulge
63.0
mm
+/ - 1.9
(Equiv. 2.48 in.) - Solid Height (B) 11.9 mm
- Width 43.2 mm +/- 0.8
- Wrench Opening 9.7 mm +/- 0.4
- Mounting Hole (E) 5.6 mm
- Bulge at Solid Height 87.1 mm
- Material Elastomer
