MB-0113-044 - Datasheet
MBA
Category Information

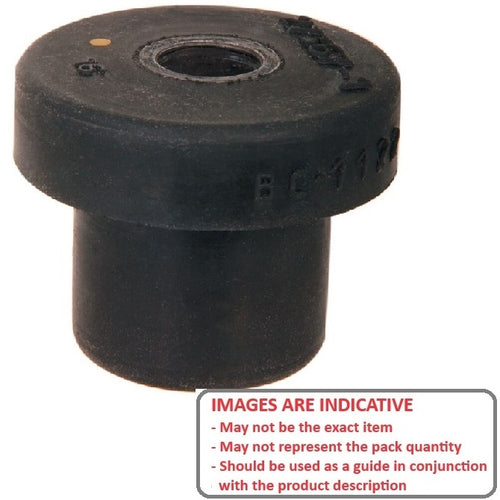

Mounts - Bonded - Tee Bush Centre BoltTee Bush Centre Bolt Bonded Mounts. Vibration isolation for mobile and static applications involving plate clamping
- An expanded range may be available on special order. Please enquire.
- Reduces structure borne noise and absorbs shock forces
- Low profile height
Product Data
- Max Static Load : 113 kg

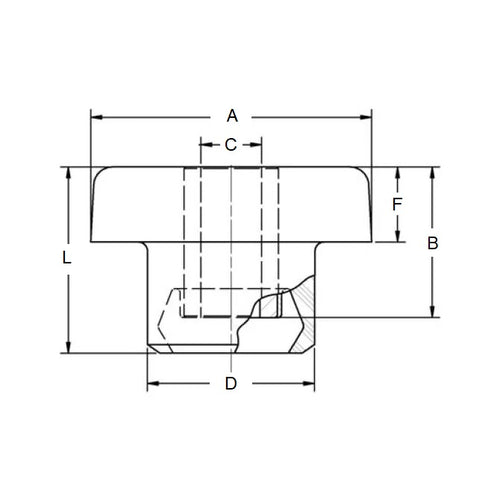

- Bolt Hole Diameter (C)
13.5
mm
(Equiv. 0.531 in.) - Flange Diameter (A)
44.5
mm
(Equiv. 1.752 in.) - Flange Width (F) 10.4 mm
- Shoulder Diameter (D) 41.5 mm
- Overall Length (B) 31.8 mm
- Material Rubber
Product Compliance and Data
Additional Resources
Cross References
- BBM15
- BBM-15
