CCI-01151-S15 - Datasheet
MBA
Category Information

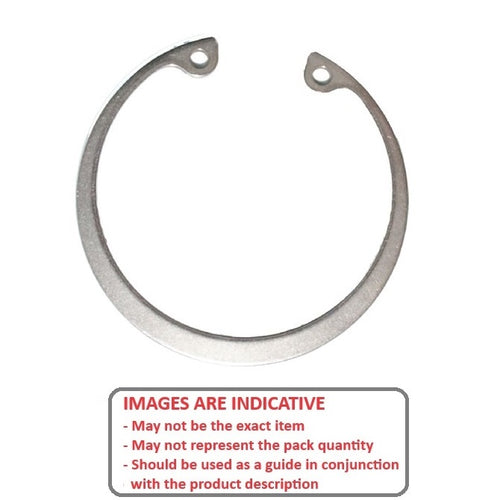

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
11.51
mm
(Equiv. 0.453 in.) - Clip Thickness (T)
0.64
mm
+/- 0.050
(Equiv. 0.025 in.) - Groove Dia. (Dg)
12.12
mm
+ 0.00 / - 0.06
(Equiv. 0.477 in.) - Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
- Groove Width (W) 0.74 mm + 0.08 / - 0.00
- Clearance in Bore (C) 6.35 mm
- Clearance in Groove (C1) 6.86 mm
- Min. Lug Diameter (h) 1.14 mm
- Min. Extension (n) 0.91
- Standard MIL-16625
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- 91580A146
- NoCor HO-045-SS
- HO045SS
- N13000045BDS
- N1300-0045BDS
