CCI-01151-CZY - Datasheet

MBA

Category Information

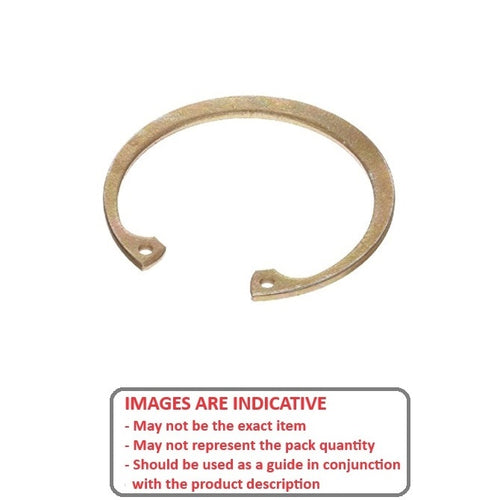

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Zinc plated carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 11.51 mm
(Equiv. 0.453 in.)
Clip Thickness (T) 0.64 mm _{+/- 0.050}
(Equiv. 0.025 in.)
Groove Dia. (Dg) 12.12 mm _{+ 0.00 / - 0.06}
(Equiv. 0.477 in.)
Approx. Loose Circlip OD (Dr) 12.65 mm + 0.25 / - 0.13
Groove Width (W) 0.74 mm + 0.08 / - 0.00
Clearance in Bore (C) 6.35 mm
Clearance in Groove (C1) 6.86 mm
Min. Lug Diameter (h) 1.14 mm
Min. Extension (n) 0.91
Standard MIL-16625
Material Carbon Steel Zinc Plated

Country of Origin: US
