ES-1111-1333-16-M - Datasheet
MBA
Category Information

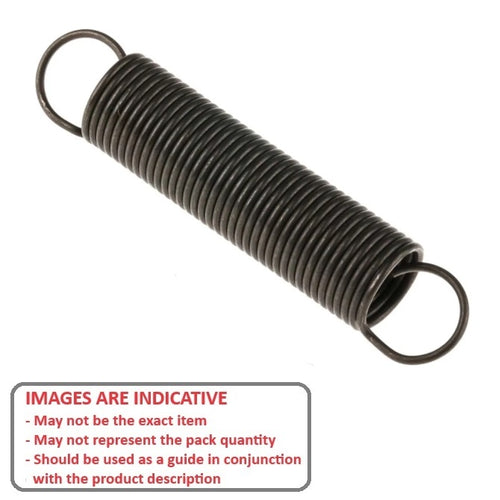

Springs - Extension - Music WireMusic Wire Extension Springs. Carbon spring steel, zinc plated selection.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- Zinc Plated Spring Steel not recommended for applications exceeding 121 Deg C (250 Deg F).
Product Data

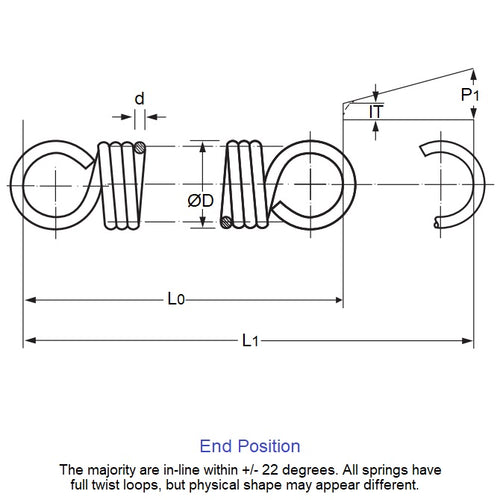

- OD (D0)
:
11.10
mm
(Equiv. 0.437 in.) - Overall Length (L0)
133.3
mm
(Equiv. 5.248 in.) - Wire Diameter (d)
1.60
mm
(Equiv. 0.063 in.) - Initial Tension (IT) 1.0 N
- Body Length 114.300 mm
- End Type Closed - Full Loop
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- ASI JWE124
