Miniature Bearings Australia
T-0111-0222-FW - Datasheet
MBA
Category Information

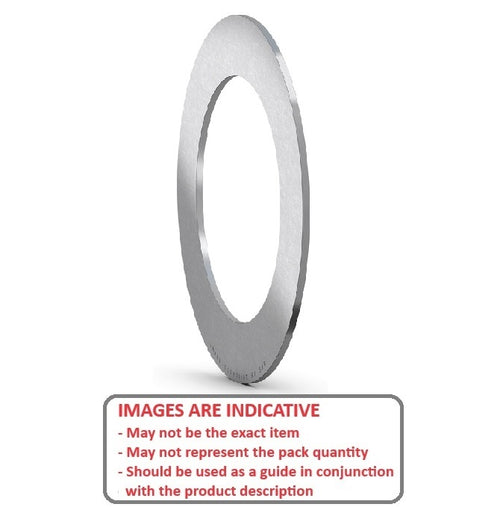

Bearings - Thrust Ball Washers Only - Chrome SteelChrome Steel Thrust Ball Washers Only Bearings. Hardened thrust washers for thrust bearings - ungrooved. Match with thrust ball and retainer or roller type.
- These washers are are used as replacements for matching ball thrust bearings. They can be used to replace worn washers, or used to select a range of thicknesses depending on your application.
- An expanded range may be available on special order. Please enquire.
- Carbon Steel Washers are hardened to RC59.61.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

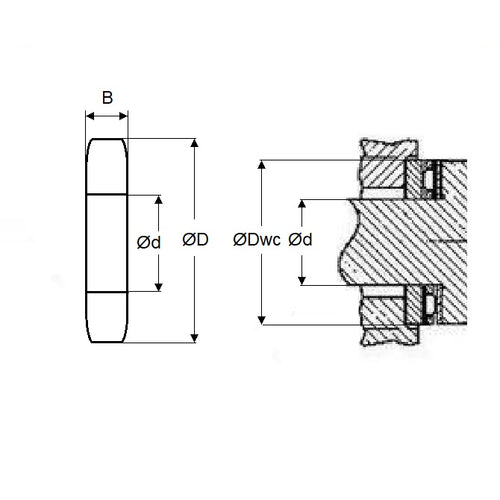

- Nominal Inside Diameter
:
11.13
mm
(Equiv. 0.438 in.) - Nominal OD
22.23
mm
(Equiv. 0.875 in.) - Description / Material Washer Only - Carbon Steel
- Nom. Thickness (B Max) 1.58 mm
- Material Carbon Steel
