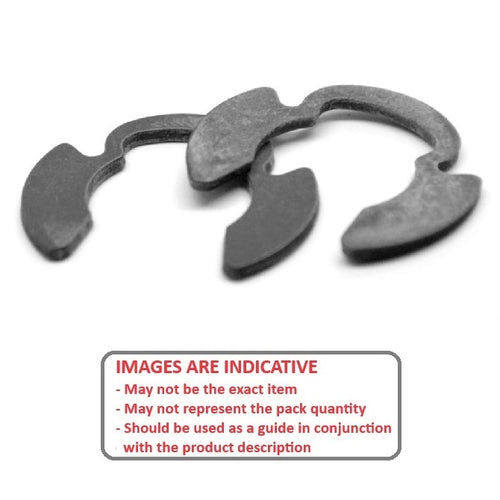

ECL-0099-0111-CZ-KR - Datasheet

MBA

Product Data

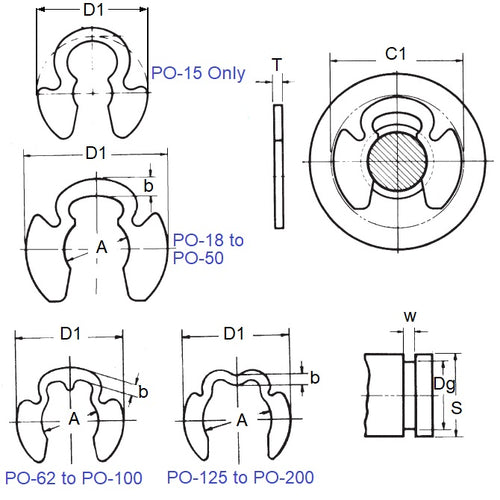

• Minimum Rec. Shaft Dia (S) : 11.11 mm _{+ 2.54 / - 0.00}
  (Equiv. 0.437 in.)
• Groove Dia. (Dg) 9.91 mm _{+/- 0.204}
  (Equiv. 0.39 in.)
• Clip Thickness (T) 1.27 mm _{+/ - 0.052}
  (Equiv. 0.05 in.)
• Clip OD Loose (D1) 19.10 mm
• Groove Width (W) 1.42 mm
• Maximum Rec. Shaft Dia (S) 13.65
• Material Zinc Plated Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Waldes 5304-043-ZD
• NoCor PO-043-ZD
• Rotor Clip PO-043-ZD
• PO043ZD
• 5304043ZD
