KW-111-189-586-C - Datasheet
ENQUIRE
Category Information

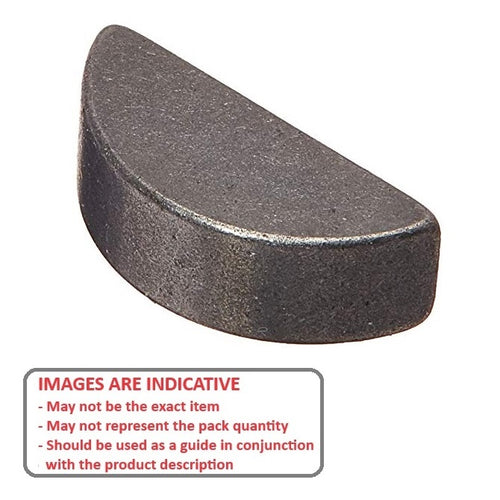

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

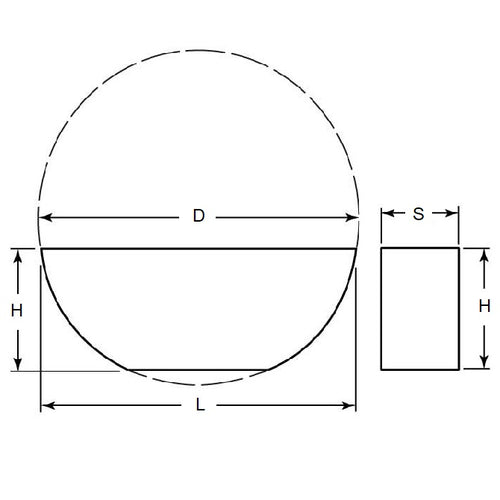

- Thickness (S) : 11.11 mm
- Approx. Height (H) 18.9 mm
- Approx. Length (L) 58.60 mm
- Basis Diameter (D) 69.85 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- ANSI 1422
- Key Size U
- NoCor® WKC00U
- KW111699C
