LYP-CLK-111-038-CZ - Datasheet
MBA
Category Information

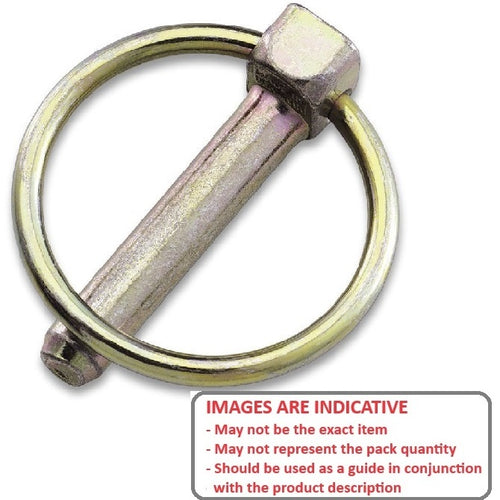

Pins - Clik - Carbon SteelCarbon Steel Clik Pins. Self locking ring snaps down to hold them securely in place. Easy grip ring for quick removal. Also known as a lynch pin.
- Features an “over center” ring loop attached to the head which snaps down hard to hold the fastener in place.
- Quick-release, tool-free locking mechanism used in various applications like agricultural equipment, trailers, and automotive systems.
- Pin is made from carbon steel and heat treated to RA 50-60.
- Ring is hot drawn spring steel with hardness of RC 47-48.
- Zinc plated.

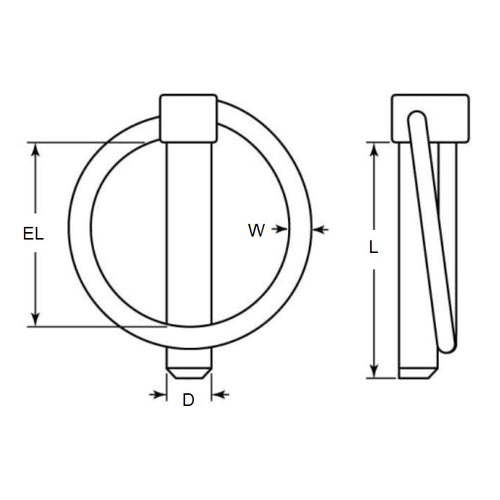

Product Data
- Pin Diameter
:
11.11
mm
(Equiv. 0.437 in.) - Grip Length
38.1
mm
(Equiv. 1.5 in.) - Wire Thickness
5.0
mm
(Equiv. 0.197 in.) - Finish Zinc Plated
- Material Carbon Steel Zinc Plated Heat Treated
Product Compliance and Data
Additional Resources
Cross References
- CLP-584
- CLP584
