HPE-111-16-029-SS - Datasheet
MBA
Category Information

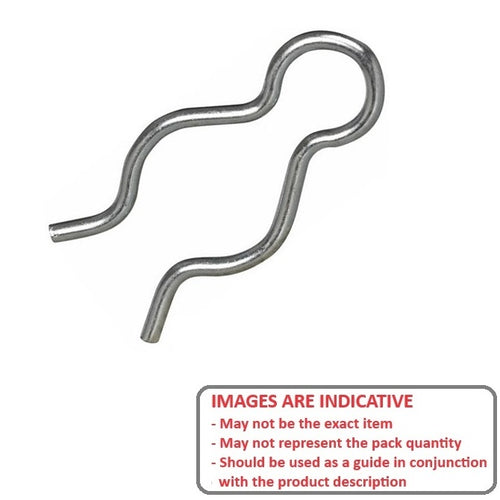

Pins - Hitch ExternalHitch External Pins. Similar to R-Clips, but designed for both arms to fit around a shaft groove rather thand having one arm through a bored hole.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Recommended Groove Diameter
:
11.11
mm
(Equiv. 0.437 in.) - Rec. Groove Width
2.0
mm

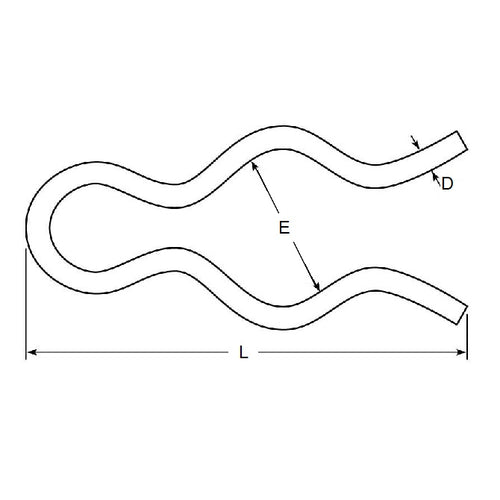

(Equiv. 0.079 in.) - Wire Thickness (D)
1.4
mm
(Equiv. 0.055 in.) - Inside Eye Diameter (E) 5.6 mm
- Length (L) 28.6 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 90153A223
- NoCor BPXS-2306
- BPXS2306
