W0111-T-018-022-WC-S2 - Datasheet
MBA
Category Information

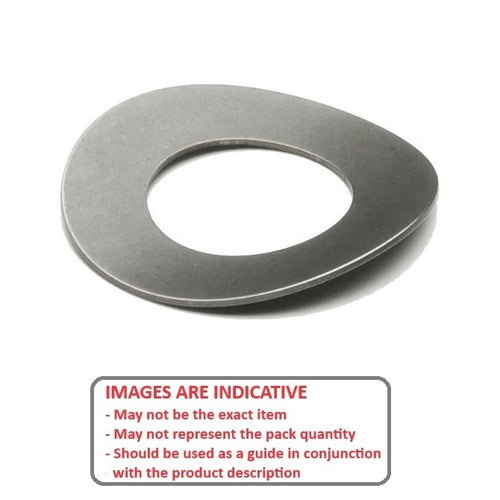

Washers - Spring - Curved - Stainless SteelStainless Steel Curved Spring Washers. Stainless steel, curved selection.
- Spring washers are available in many different materials and types, including curved and waved series.
- They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
- An expanded range may be available on special order. Please enquire.

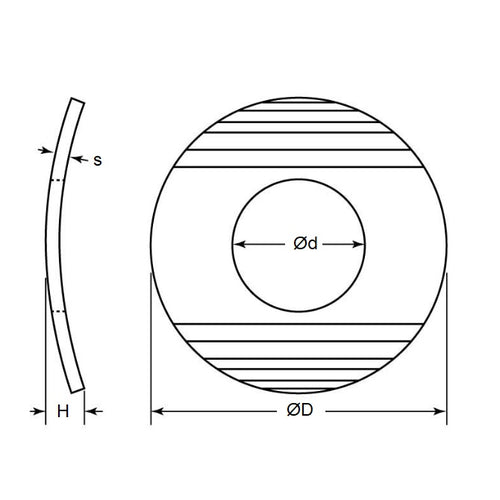

- ID and OD are long axis dimensions
Product Data
- Nominal Inside Diameter (B)
:
11.11
mm
(Equiv. 0.437 in.) - Nominal Outside Diameter (A)
17.40
mm
(Equiv. 0.685 in.) - Nom. Height (C)
2.18
mm
(Equiv. 0.086 in.) - Thickness (D) 0.38 mm
- Info Made In USA
- Type Curved DIN 137 Type A
- Nominal Screw Size M11, 7/16
- Actual ID (Ref) 11.9 mm
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor CW-437-015-SS
- CW437015SS
