W0111-F-014-0953-S3 - Datasheet

MBA

Category Information

Spacers - Through Bore Round - Stainless Steel

Stainless Steel Through Bore Round Spacers. Shaft spacers - Stainless Steel

An expanded range may be available on special order. Please enquire.

Product Data

ID (d) : 11.11 mm _{+ 0.1 / - 0.0}
(Equiv. 0.437 in.)
OD (D) 14.29 mm _{+ 0.0 / - 0.1}
(Equiv. 0.563 in.)
Length (L) 9.53 mm _{+ /- 0.05}
(Equiv. 0.375 in.)
Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Country of Origin: GB

Product Compliance and Data

Additional Resources

Flat Washers

Cross References

A7X8C14375
A7X8-C14375

View full details

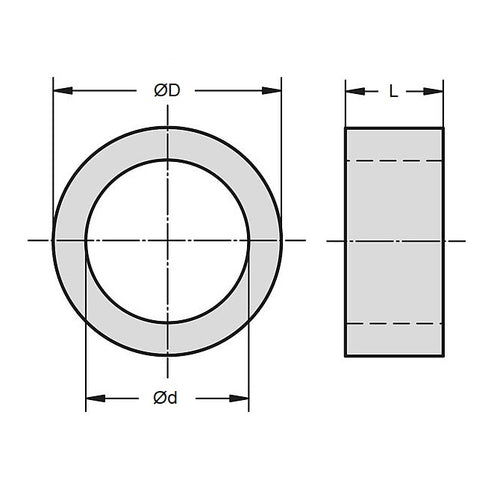

W0111-F-014-0953-S3Diagram

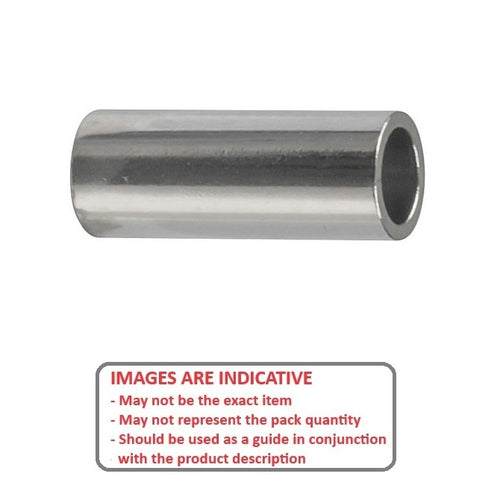

W0111-F-014-0953-S3Image
